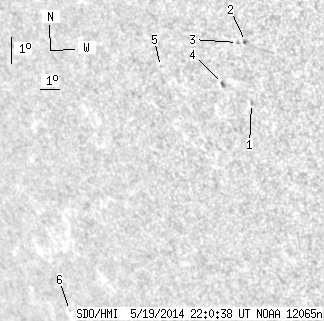

SDO HMI 2014-05-19 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 6.84 | 0.34 | 5.18 | -22.91 | 111.69 | -45.99 | 118.87 | 0.7570 | -178.4 | -79.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.94 | -23.60 | 112.86 | -44.83 | 120.19 | 0.7497 | -626.0 | -466.6 | |
| 0.00 | 1.53 | 0.00 | 1.12 | -21.60 | 113.41 | -44.28 | 117.85 | 0.7364 | 598.0 | 556.8 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -21.62 | 113.03 | -44.65 | 117.73 | 0.7404 | 575.0 | 437.3 | |
| 0.45 | 2.25 | 0.34 | 1.70 | -22.92 | 111.79 | -45.90 | 118.91 | 0.7578 | -594.0 | -561.0 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -22.29 | 109.06 | -48.63 | 117.16 | 0.7826 | -529.0 | -530.7 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -30.18 | 98.39 | -59.30 | 123.17 | 0.8899 | -353.0 | -326.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
