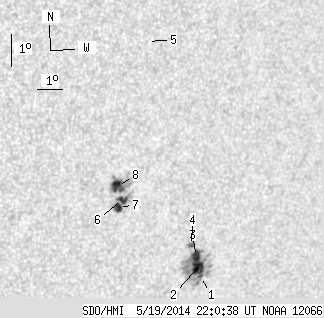

SDO HMI 2014-05-19 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.27 | 119.34 | 27.27 | 77.25 | -17.18 | 195.42 | 37.73 | 245.48 | 0.6446 | 87.9 | 115.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 64.84 | 0.90 | 42.98 | -18.47 | 197.15 | 39.46 | 244.37 | 0.6710 | 630.9 | 389.5 | |
| 11.96 | -1.00 | 7.94 | -1.00 | -18.19 | 196.95 | 39.26 | 244.68 | 0.6675 | 922.4 | 999999 | |
| 7.19 | -1.00 | 4.76 | -1.00 | -17.85 | 196.82 | 39.13 | 245.11 | 0.6645 | 966.2 | 999999 | |
| 1.71 | 4.32 | 1.12 | 2.84 | -17.50 | 196.52 | 38.84 | 245.48 | 0.6597 | 884.7 | 725.8 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -11.22 | 193.56 | 35.87 | 254.01 | 0.6001 | 525.0 | 503.3 | |
| 4.77 | 21.31 | 2.99 | 13.39 | -16.12 | 193.45 | 35.76 | 246.14 | 0.6162 | -871.9 | -487.9 | |
| 4.86 | -6.00 | 3.05 | -6.00 | -16.38 | 193.35 | 35.66 | 245.69 | 0.6160 | -828.7 | 999999 | |
| 10.43 | 28.33 | 6.51 | 17.71 | -15.72 | 193.17 | 35.49 | 246.63 | 0.6110 | -981.1 | -313.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
