SDO HMI 2014-05-19 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.61 | 94.62 | 31.69 | 161.48 | -12.94 | 230.18 | 73.05 | 257.07 | 0.9564 | 288.5 | 119.7 | |
|
previous
or next observation for the same group /

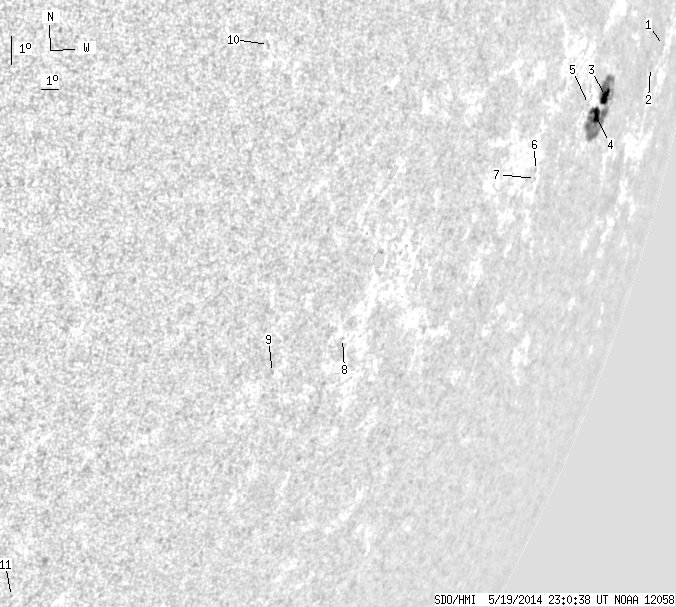

back to the solar disc SDO HMI 2014-05-19 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.34 | 0.00 | 6.41 | -10.79 | 236.95 | 79.82 | 259.42 | 0.9844 | 114.0 | 98.0 | |
| 0.00 | 1.98 | 0.00 | 4.79 | -11.52 | 235.53 | 78.40 | 258.68 | 0.9798 | 84.0 | 89.7 | |
| 8.90 | 83.46 | 15.41 | 142.68 | -12.59 | 230.59 | 73.46 | 257.49 | 0.9596 | 346.2 | 133.6 | |
| 9.71 | -3.00 | 16.28 | -3.00 | -13.17 | 229.95 | 72.82 | 256.87 | 0.9565 | 449.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 2.00 | -12.90 | 229.01 | 71.88 | 257.13 | 0.9517 | 505.0 | 501.1 | |
| 0.00 | 0.90 | 0.00 | 1.22 | -15.07 | 225.57 | 68.44 | 254.64 | 0.9329 | -247.0 | -199.6 | |
| 0.00 | 0.45 | 0.00 | 0.62 | -15.32 | 225.74 | 68.61 | 254.39 | 0.9340 | -107.0 | -86.2 | |
| 0.00 | 1.53 | 0.00 | 1.50 | -20.74 | 215.35 | 58.22 | 247.12 | 0.8649 | -388.0 | -391.9 | |
| 0.00 | 1.17 | 0.00 | 1.06 | -21.94 | 211.90 | 54.77 | 245.00 | 0.8382 | -332.0 | -277.5 | |
| 0.00 | 1.26 | 0.00 | 0.99 | -11.70 | 207.62 | 50.49 | 256.64 | 0.7788 | -166.0 | -115.9 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -29.66 | 202.55 | 45.42 | 232.68 | 0.7805 | -380.0 | -302.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
