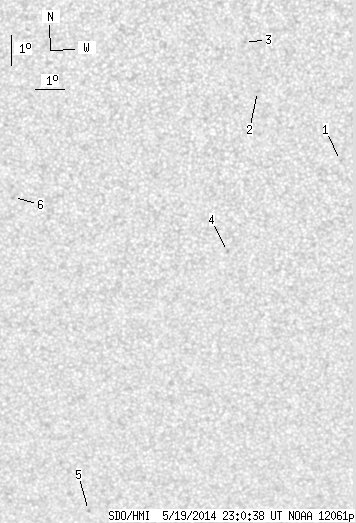

SDO HMI 2014-05-19 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.38 | 0.00 | 4.02 | -26.08 | 157.37 | 0.24 | 181.50 | 0.4106 | -720.3 | -619.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.48 | -23.90 | 163.01 | 5.88 | 194.17 | 0.3843 | -556.0 | -491.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -21.67 | 160.20 | 3.07 | 188.47 | 0.3396 | -611.0 | -533.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -20.10 | 159.75 | 2.62 | 187.93 | 0.3128 | -904.0 | -777.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -26.91 | 159.30 | 2.17 | 184.61 | 0.4223 | -796.0 | -616.9 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -35.93 | 154.30 | -2.83 | 175.89 | 0.5599 | -807.0 | -707.1 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -25.10 | 152.10 | -5.03 | 168.50 | 0.4001 | -648.0 | -588.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
