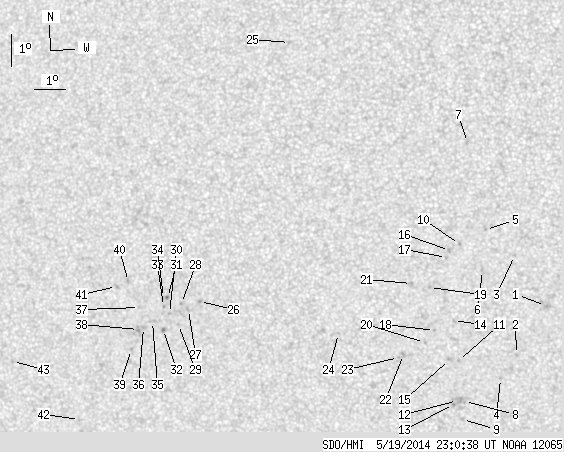

SDO HMI 2014-05-19 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 68.49 | 0.00 | 36.71 | -18.23 | 141.97 | -15.17 | 139.63 | 0.3804 | 123.2 | 91.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.76 | 0.00 | 2.99 | -17.85 | 149.21 | -7.92 | 154.20 | 0.3026 | 783.0 | 676.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -19.39 | 148.20 | -8.94 | 153.75 | 0.3327 | 621.0 | 559.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -16.27 | 148.29 | -8.84 | 148.92 | 0.2870 | 860.0 | 645.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -20.15 | 147.63 | -9.50 | 153.42 | 0.3479 | 806.0 | 591.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -15.45 | 147.40 | -9.73 | 144.81 | 0.2838 | 899.0 | 735.0 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -16.74 | 147.24 | -9.89 | 146.94 | 0.3028 | 841.0 | 610.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.75 | 146.96 | -10.17 | 137.02 | 0.2538 | 876.0 | 634.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -20.88 | 146.39 | -10.74 | 151.60 | 0.3676 | 760.0 | 689.4 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -21.46 | 146.28 | -10.85 | 152.15 | 0.3765 | 185.0 | 171.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -15.92 | 146.55 | -10.58 | 143.52 | 0.2984 | 971.0 | 776.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.57 | 146.29 | -10.84 | 149.45 | 0.3502 | 714.0 | 545.5 | |
| 0.00 | 5.85 | 0.00 | 3.11 | -20.85 | 146.16 | -10.97 | 151.05 | 0.3689 | 719.0 | 693.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -20.97 | 146.02 | -11.11 | 150.93 | 0.3718 | 784.0 | 692.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.30 | 146.21 | -10.92 | 147.20 | 0.3335 | 596.0 | 410.9 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -19.54 | 146.00 | -11.13 | 148.74 | 0.3522 | 850.0 | 581.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -16.10 | 146.22 | -10.91 | 143.07 | 0.3041 | 827.0 | 761.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -16.32 | 146.11 | -11.02 | 143.25 | 0.3080 | 700.0 | 538.0 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -18.61 | 145.57 | -11.56 | 146.27 | 0.3434 | 805.0 | 695.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -17.26 | 145.50 | -11.63 | 143.65 | 0.3262 | 915.0 | 698.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -18.99 | 145.22 | -11.91 | 146.12 | 0.3517 | 651.0 | 571.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -17.12 | 144.93 | -12.21 | 142.09 | 0.3303 | 879.0 | 655.4 | |
| 0.00 | 2.25 | 0.00 | 1.19 | -19.36 | 144.50 | -12.63 | 145.22 | 0.3632 | 927.0 | 706.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -19.46 | 144.33 | -12.81 | 145.02 | 0.3661 | 761.0 | 652.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -18.68 | 142.41 | -14.72 | 139.90 | 0.3754 | 670.0 | 512.3 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -9.63 | 141.45 | -15.68 | 116.33 | 0.2986 | 622.0 | 522.5 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -17.61 | 137.88 | -19.25 | 130.55 | 0.4154 | -930.0 | -762.4 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -17.86 | 137.48 | -19.65 | 130.47 | 0.4226 | -543.0 | -633.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -17.67 | 137.26 | -19.87 | 129.82 | 0.4234 | -806.0 | -664.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.33 | 137.08 | -20.05 | 130.82 | 0.4318 | -699.0 | -557.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -17.98 | 136.82 | -20.31 | 129.81 | 0.4317 | -847.0 | -767.7 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -17.47 | 136.81 | -20.32 | 128.85 | 0.4271 | -993.0 | -830.1 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -18.48 | 136.55 | -20.58 | 130.40 | 0.4396 | -810.0 | -654.5 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.76 | 136.64 | -20.49 | 129.16 | 0.4318 | -848.0 | -710.4 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -17.47 | 136.67 | -20.46 | 128.67 | 0.4287 | -748.0 | -683.9 | |
| 0.00 | 2.61 | 0.00 | 1.44 | -18.22 | 136.21 | -20.92 | 129.49 | 0.4413 | -677.0 | -519.8 | |
| 0.00 | 2.34 | 0.00 | 1.29 | -18.41 | 135.87 | -21.26 | 129.41 | 0.4471 | -865.0 | -634.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -17.78 | 135.82 | -21.31 | 128.17 | 0.4420 | -754.0 | -629.2 | |
| 0.00 | 2.70 | 0.00 | 1.50 | -18.47 | 135.70 | -21.44 | 129.30 | 0.4498 | -783.0 | -674.2 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -19.10 | 135.37 | -21.76 | 130.03 | 0.4594 | -607.0 | -428.4 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -16.95 | 135.55 | -21.58 | 126.28 | 0.4383 | -864.0 | -712.1 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -17.10 | 135.12 | -22.01 | 126.07 | 0.4450 | -760.0 | -583.2 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -21.30 | 133.20 | -23.94 | 131.24 | 0.5047 | -590.0 | -500.8 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -19.41 | 131.13 | -26.00 | 126.02 | 0.5132 | -601.0 | -371.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
