SDO HMI 2014-05-20 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.10 | 18.44 | 4.51 | 10.23 | 9.88 | 180.57 | 23.99 | 297.19 | 0.4526 | -510.1 | -191.4 | |
|
previous
or next observation for the same group /

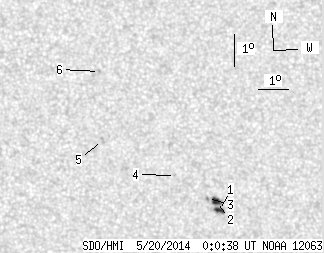

back to the solar disc SDO HMI 2014-05-20 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.24 | 12.50 | 1.80 | 6.97 | 9.10 | 181.47 | 24.89 | 294.71 | 0.4594 | -882.0 | -651.4 | |
| 4.86 | -1.00 | 2.71 | -1.00 | 9.38 | 181.39 | 24.81 | 295.33 | 0.4600 | -953.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 9.46 | 181.09 | 24.52 | 295.77 | 0.4564 | -844.0 | -681.0 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 10.16 | 180.07 | 23.49 | 298.13 | 0.4468 | -614.0 | -494.0 | |
| 0.00 | 2.61 | 0.00 | 1.42 | 11.22 | 177.71 | 21.14 | 302.85 | 0.4228 | 602.0 | 556.5 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 13.38 | 177.80 | 21.22 | 306.95 | 0.4425 | 687.0 | 516.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
