SDO HMI 2014-05-20 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 11.70 | 0.60 | 5.99 | -16.40 | 157.60 | 1.03 | 184.61 | 0.2511 | -352.8 | -24.5 | |
|
previous
or next observation for the same group /

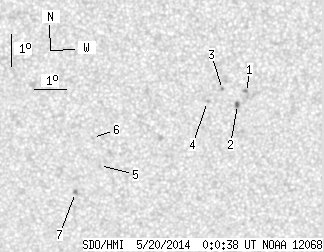

back to the solar disc SDO HMI 2014-05-20 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.33 | 0.00 | 1.70 | -15.52 | 159.41 | 2.84 | 191.63 | 0.2377 | 1074.0 | 782.9 | |
| 1.17 | 2.52 | 0.60 | 1.29 | -15.90 | 159.14 | 2.56 | 190.22 | 0.2430 | 1002.1 | 820.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -15.43 | 158.66 | 2.08 | 188.65 | 0.2338 | -863.0 | -687.0 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -15.80 | 158.19 | 1.61 | 186.52 | 0.2391 | -922.0 | -674.8 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -17.81 | 154.76 | -1.81 | 173.63 | 0.2732 | -679.0 | -566.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -16.93 | 154.55 | -2.03 | 172.45 | 0.2588 | -592.0 | -513.2 | |
| 0.00 | 1.98 | 0.00 | 1.02 | -18.66 | 153.98 | -2.59 | 171.43 | 0.2891 | -948.0 | -773.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
