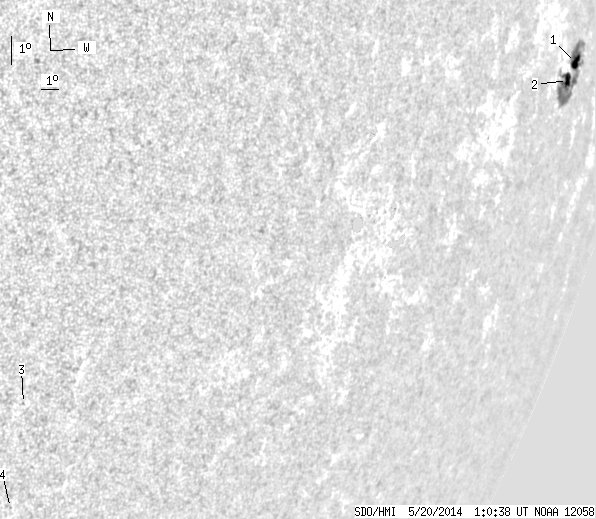

SDO HMI 2014-05-20 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.39 | 79.89 | 28.08 | 144.39 | -12.94 | 230.16 | 74.13 | 257.10 | 0.9623 | 290.6 | 145.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.46 | 78.72 | 15.64 | 143.50 | -12.61 | 230.54 | 74.51 | 257.49 | 0.9645 | 299.2 | 149.2 | |
| 6.93 | -1.00 | 12.44 | -1.00 | -13.19 | 230.08 | 74.05 | 256.88 | 0.9624 | 402.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -24.37 | 201.19 | 45.16 | 238.97 | 0.7561 | -490.0 | -369.5 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -27.82 | 202.29 | 46.27 | 235.22 | 0.7803 | -456.0 | -419.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
