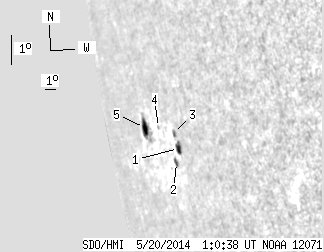

SDO HMI 2014-05-20 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.15 | 28.61 | 26.60 | 61.52 | -11.37 | 79.06 | -76.96 | 101.19 | 0.9742 | 75.3 | -138.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.42 | 6.03 | 6.27 | 11.06 | -11.86 | 81.56 | -74.46 | 101.72 | 0.9642 | 370.9 | 278.6 | |
| 1.35 | 3.42 | 2.58 | 6.53 | -12.27 | 80.99 | -75.04 | 102.14 | 0.9668 | 242.0 | 149.2 | |
| 0.00 | 2.43 | 0.00 | 4.51 | -11.39 | 81.33 | -74.70 | 101.23 | 0.9652 | -27.0 | 8.1 | |
| 0.00 | 1.17 | 0.00 | 2.44 | -11.14 | 79.63 | -76.40 | 100.95 | 0.9724 | -397.0 | -377.0 | |
| 7.38 | 15.56 | 17.75 | 36.98 | -11.07 | 77.66 | -78.36 | 100.87 | 0.9797 | -21.0 | -305.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
