SDO HMI 2014-05-20 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 52.74 | 0.00 | 27.92 | -17.86 | 142.61 | -12.31 | 144.80 | 0.3477 | 304.2 | 192.3 | |
|
previous
or next observation for the same group /

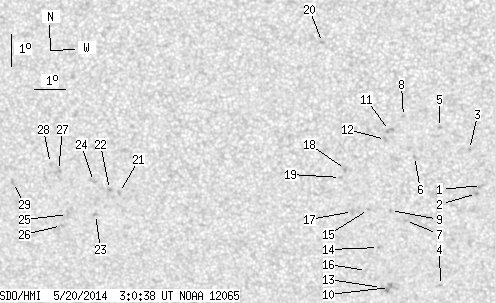

back to the solar disc SDO HMI 2014-05-20 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.79 | -17.64 | 149.38 | -5.55 | 161.03 | 0.2847 | 855.0 | 667.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -17.89 | 149.21 | -5.72 | 160.81 | 0.2896 | 1084.0 | 905.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -16.51 | 149.03 | -5.89 | 158.43 | 0.2690 | 869.0 | 720.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -20.81 | 147.92 | -7.00 | 160.46 | 0.3421 | 710.0 | 547.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -15.82 | 148.10 | -6.82 | 154.28 | 0.2646 | 904.0 | 680.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -16.72 | 147.27 | -7.66 | 153.21 | 0.2843 | 773.0 | 607.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -18.73 | 146.89 | -8.04 | 155.20 | 0.3170 | 726.0 | 552.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.47 | 146.97 | -7.95 | 150.05 | 0.2684 | 826.0 | 660.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -18.42 | 146.42 | -8.51 | 153.49 | 0.3157 | 814.0 | 613.5 | |
| 0.00 | 6.39 | 0.00 | 3.38 | -20.87 | 146.25 | -8.67 | 156.37 | 0.3530 | 785.0 | 750.6 | |
| 0.00 | 3.33 | 0.00 | 1.72 | -15.90 | 146.50 | -8.42 | 149.49 | 0.2785 | 766.0 | 783.9 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -16.18 | 146.36 | -8.56 | 149.61 | 0.2837 | 867.0 | 713.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -20.86 | 145.99 | -8.94 | 155.74 | 0.3548 | 718.0 | 550.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -19.59 | 145.96 | -8.96 | 154.00 | 0.3362 | 866.0 | 743.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -18.38 | 145.71 | -9.21 | 151.57 | 0.3206 | 959.0 | 735.0 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -20.32 | 145.53 | -9.39 | 153.94 | 0.3500 | 16.0 | 12.0 | |
| 0.00 | 2.61 | 0.00 | 1.37 | -18.44 | 145.19 | -9.74 | 150.34 | 0.3257 | 815.0 | 600.3 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -17.11 | 145.04 | -9.89 | 147.69 | 0.3084 | 873.0 | 708.6 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -17.36 | 144.86 | -10.06 | 147.70 | 0.3134 | 680.0 | 503.2 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -13.15 | 144.50 | -10.42 | 137.50 | 0.2620 | 812.0 | 581.8 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -17.77 | 137.58 | -17.34 | 133.74 | 0.3945 | -824.0 | -682.0 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -17.67 | 137.26 | -17.66 | 133.04 | 0.3973 | -812.0 | -703.5 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -18.45 | 136.71 | -18.22 | 133.69 | 0.4118 | -863.0 | -697.9 | |
| 0.00 | 2.52 | 0.00 | 1.36 | -17.41 | 136.75 | -18.17 | 131.77 | 0.4007 | -903.0 | -733.9 | |
| 0.00 | 2.52 | 0.00 | 1.38 | -18.44 | 135.76 | -19.16 | 132.29 | 0.4227 | -780.0 | -629.4 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.79 | 135.52 | -19.41 | 132.58 | 0.4290 | -698.0 | -562.1 | |
| 0.00 | 3.78 | 0.00 | 2.05 | -17.05 | 135.62 | -19.31 | 129.43 | 0.4110 | -766.0 | -664.6 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -16.83 | 135.37 | -19.55 | 128.65 | 0.4119 | -639.0 | -490.2 | |
| 0.00 | 2.61 | 0.00 | 1.43 | -17.41 | 134.05 | -20.87 | 128.07 | 0.4336 | -610.0 | -597.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
