SDO HMI 2014-05-20 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.98 | 0.00 | 5.96 | -23.49 | 162.05 | 8.23 | 202.21 | 0.4036 | -412.1 | -366.1 | |
|
previous
or next observation for the same group /

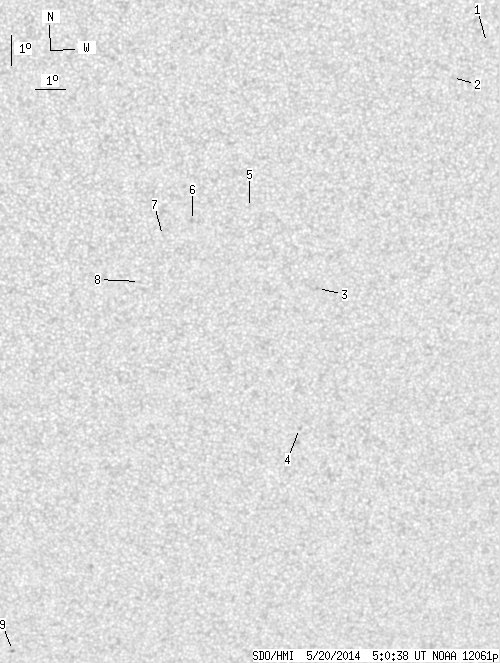

back to the solar disc SDO HMI 2014-05-20 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.95 | -15.65 | 169.26 | 15.44 | 227.39 | 0.3497 | -2.0 | 0.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -16.75 | 168.23 | 14.41 | 223.14 | 0.3500 | -5.0 | -3.5 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -23.52 | 164.30 | 10.47 | 204.49 | 0.4038 | -846.0 | -667.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -28.16 | 164.09 | 10.26 | 199.64 | 0.4692 | -725.0 | -552.1 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -20.91 | 161.87 | 8.04 | 202.04 | 0.3499 | -96.0 | -69.0 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -21.33 | 160.02 | 6.20 | 196.95 | 0.3463 | -710.0 | -595.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -21.82 | 159.06 | 5.23 | 194.07 | 0.3497 | -11.0 | -4.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -23.31 | 158.35 | 4.52 | 191.31 | 0.3708 | -532.0 | -440.8 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -35.98 | 154.18 | 0.35 | 180.51 | 0.5598 | -782.0 | -678.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
