SDO HMI 2014-05-20 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.05 | 70.47 | 28.58 | 150.88 | -12.96 | 229.97 | 76.70 | 257.13 | 0.9727 | 227.8 | 123.7 | |
|
previous
or next observation for the same group /

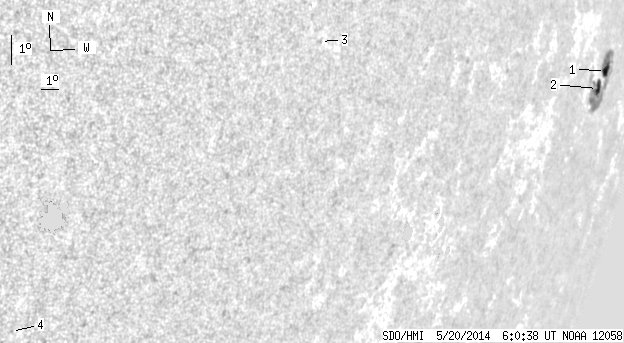

back to the solar disc SDO HMI 2014-05-20 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.39 | 68.31 | 14.28 | 149.16 | -12.63 | 230.56 | 77.28 | 257.52 | 0.9759 | 206.2 | 131.4 | |
| 6.66 | -1.00 | 14.30 | -1.00 | -13.21 | 230.01 | 76.74 | 256.91 | 0.9739 | 349.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.94 | -12.43 | 208.20 | 54.93 | 256.30 | 0.8248 | -374.0 | -358.0 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -21.90 | 196.45 | 43.17 | 241.25 | 0.7263 | -609.0 | -490.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
