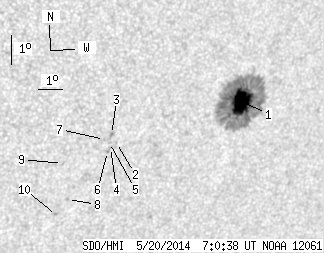

SDO HMI 2014-05-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.10 | 208.26 | 23.74 | 140.45 | -24.69 | 190.31 | 37.58 | 234.74 | 0.6808 | 616.6 | 271.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.10 | 197.46 | 23.74 | 133.51 | -24.60 | 190.57 | 37.84 | 235.04 | 0.6829 | 1103.8 | 327.8 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -26.04 | 185.89 | 33.16 | 230.05 | 0.6433 | -616.0 | -542.6 | |
| 0.00 | 2.34 | 0.00 | 1.50 | -25.78 | 185.61 | 32.88 | 230.19 | 0.6385 | -786.0 | -684.5 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -26.21 | 185.70 | 32.97 | 229.69 | 0.6426 | -669.0 | -514.4 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -26.05 | 185.61 | 32.88 | 229.84 | 0.6405 | -666.0 | -642.9 | |
| 0.00 | 1.53 | 0.00 | 0.99 | -26.35 | 185.62 | 32.90 | 229.45 | 0.6427 | -741.0 | -641.6 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -25.95 | 185.38 | 32.65 | 229.80 | 0.6374 | -696.0 | -597.3 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -27.98 | 184.54 | 31.81 | 226.50 | 0.6440 | -721.0 | -623.2 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -26.78 | 183.95 | 31.23 | 227.60 | 0.6290 | -521.0 | -564.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -28.53 | 184.27 | 31.54 | 225.59 | 0.6457 | -599.0 | -670.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
