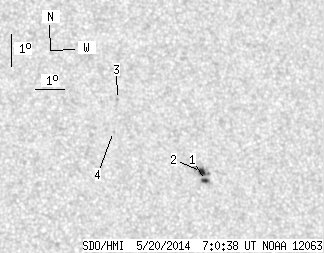

SDO HMI 2014-05-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.85 | 16.83 | 3.37 | 9.69 | 9.43 | 181.14 | 28.42 | 292.60 | 0.5106 | -444.1 | -475.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.89 | 14.85 | 1.09 | 8.57 | 9.03 | 181.55 | 28.82 | 291.56 | 0.5140 | -922.8 | -667.8 | |
| 3.96 | -1.00 | 2.28 | -1.00 | 9.31 | 181.43 | 28.71 | 292.15 | 0.5138 | -1066.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 11.50 | 178.73 | 26.00 | 298.28 | 0.4897 | 590.0 | 443.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 10.50 | 178.49 | 25.76 | 296.62 | 0.4800 | 463.0 | 379.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
