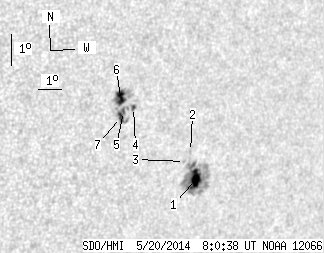

SDO HMI 2014-05-20 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.81 | 106.38 | 19.40 | 75.26 | -17.49 | 195.79 | 43.61 | 247.30 | 0.7149 | 29.2 | 111.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.78 | 66.87 | 9.26 | 48.50 | -18.27 | 197.10 | 44.92 | 246.68 | 0.7324 | 925.8 | 317.2 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -17.39 | 196.59 | 44.41 | 247.68 | 0.7242 | 225.0 | 167.1 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -17.71 | 196.43 | 44.24 | 247.20 | 0.7233 | 738.0 | 638.0 | |
| 1.26 | 2.61 | 0.86 | 1.78 | -16.07 | 193.75 | 41.56 | 248.53 | 0.6874 | -599.6 | -438.5 | |
| 1.17 | 34.83 | 0.79 | 23.50 | -16.21 | 193.36 | 41.18 | 248.20 | 0.6832 | -864.8 | -446.0 | |
| 9.00 | -5.00 | 6.06 | -5.00 | -15.77 | 193.12 | 40.94 | 248.74 | 0.6790 | -953.6 | 999999 | |
| 3.60 | -5.00 | 2.43 | -5.00 | -16.40 | 193.28 | 41.10 | 247.90 | 0.6829 | -795.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
