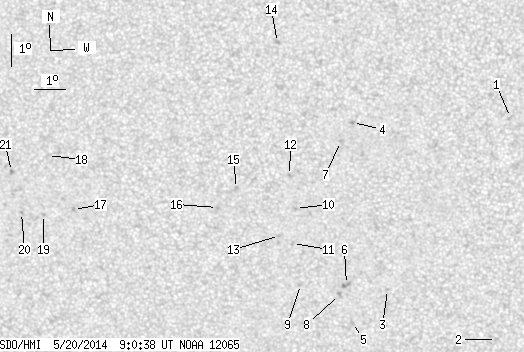

SDO HMI 2014-05-20 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 35.64 | 0.00 | 18.65 | -18.58 | 144.48 | -7.16 | 158.03 | 0.3177 | 352.0 | 342.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.15 | -15.42 | 151.83 | 0.19 | 180.79 | 0.2322 | 151.0 | 354.8 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -22.47 | 151.36 | -0.27 | 179.28 | 0.3502 | -12.0 | -5.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -20.85 | 147.83 | -3.81 | 169.10 | 0.3295 | 816.0 | 577.6 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -15.57 | 146.85 | -4.79 | 161.00 | 0.2482 | 1013.0 | 816.6 | |
| 0.00 | 2.34 | 0.00 | 1.24 | -21.90 | 146.65 | -4.98 | 166.65 | 0.3505 | 49.0 | 154.5 | |
| 0.00 | 3.69 | 0.00 | 1.94 | -20.68 | 146.50 | -5.13 | 165.31 | 0.3317 | 884.0 | 840.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -16.16 | 146.45 | -5.19 | 160.40 | 0.2599 | 895.0 | 694.7 | |
| 0.00 | 2.43 | 0.00 | 1.28 | -21.00 | 146.26 | -5.37 | 164.93 | 0.3378 | 758.0 | 593.0 | |
| 0.00 | 1.89 | 0.00 | 0.99 | -20.68 | 145.00 | -6.63 | 161.31 | 0.3387 | 616.0 | 515.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.26 | 144.94 | -6.69 | 158.37 | 0.3016 | 918.0 | 692.9 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -19.37 | 144.80 | -6.84 | 159.33 | 0.3196 | 762.0 | 647.8 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -17.22 | 144.79 | -6.84 | 156.49 | 0.2866 | 800.0 | 584.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.11 | 144.39 | -7.25 | 157.90 | 0.3181 | 809.0 | 639.3 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -13.07 | 144.55 | -7.08 | 147.88 | 0.2268 | 856.0 | 726.1 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -17.62 | 143.07 | -8.56 | 152.15 | 0.3051 | 825.0 | 734.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -18.21 | 142.43 | -9.21 | 151.39 | 0.3187 | 721.0 | 528.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -18.24 | 137.73 | -13.90 | 140.77 | 0.3625 | -796.0 | -651.1 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -16.53 | 137.02 | -14.62 | 136.05 | 0.3501 | -5.0 | -4.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -18.38 | 136.73 | -14.91 | 139.14 | 0.3747 | -721.0 | -558.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -18.31 | 136.01 | -15.63 | 137.71 | 0.3817 | -923.0 | -710.5 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -17.02 | 135.79 | -15.84 | 134.82 | 0.3696 | -1023.0 | -877.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
