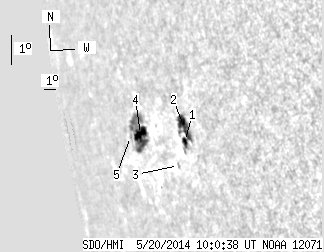

SDO HMI 2014-05-20 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.09 | 73.80 | 41.68 | 118.94 | -11.29 | 79.03 | -72.05 | 101.21 | 0.9518 | 3.7 | -43.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.61 | 26.73 | 3.66 | 37.22 | -11.64 | 81.79 | -69.30 | 101.67 | 0.9371 | 317.1 | 208.9 | |
| 12.69 | -1.00 | 17.61 | -1.00 | -11.15 | 81.96 | -69.13 | 101.15 | 0.9359 | 417.0 | 999999 | |
| 0.00 | 1.44 | 0.00 | 2.11 | -12.36 | 80.82 | -70.27 | 102.39 | 0.9429 | 264.0 | 205.8 | |
| 11.79 | 44.10 | 20.41 | 76.78 | -11.29 | 77.67 | -73.41 | 101.17 | 0.9592 | -440.9 | -145.5 | |
| 0.00 | 1.53 | 0.00 | 2.83 | -11.31 | 76.51 | -74.57 | 101.17 | 0.9647 | 392.0 | 382.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
