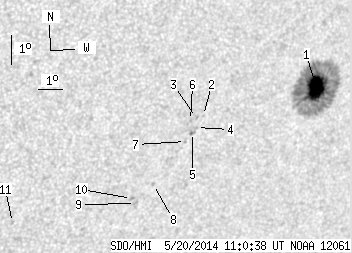

SDO HMI 2014-05-20 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.87 | 200.94 | 20.81 | 139.43 | -24.85 | 190.05 | 39.52 | 235.60 | 0.7020 | 551.2 | 240.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.87 | 184.65 | 20.81 | 128.66 | -24.64 | 190.50 | 39.97 | 236.15 | 0.7053 | 1111.5 | 317.5 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -25.65 | 186.07 | 35.53 | 232.20 | 0.6653 | -476.0 | -422.4 | |
| 0.00 | 1.44 | 0.00 | 0.95 | -25.72 | 185.80 | 35.27 | 231.93 | 0.6630 | -684.0 | -631.0 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -26.05 | 185.92 | 35.38 | 231.57 | 0.6663 | -482.0 | -387.6 | |
| 0.00 | 2.34 | 0.00 | 1.55 | -26.22 | 185.81 | 35.27 | 231.28 | 0.6663 | -586.0 | -484.3 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -25.83 | 185.59 | 35.05 | 231.65 | 0.6615 | -750.0 | -694.6 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -26.53 | 185.63 | 35.09 | 230.76 | 0.6664 | -593.0 | -508.4 | |
| 0.00 | 1.62 | 0.00 | 1.08 | -27.99 | 184.82 | 34.28 | 228.32 | 0.6682 | -571.0 | -508.0 | |
| 0.00 | 3.06 | 0.00 | 2.03 | -28.64 | 184.31 | 33.77 | 227.12 | 0.6679 | -584.0 | -489.7 | |
| 0.00 | 2.16 | 0.00 | 1.43 | -28.48 | 184.08 | 33.54 | 227.17 | 0.6646 | -763.0 | -641.6 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -29.37 | 179.54 | 29.00 | 222.39 | 0.6289 | -658.0 | -540.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
