SDO HMI 2014-05-20 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 36.72 | 1.14 | 19.18 | -18.70 | 143.96 | -6.03 | 161.72 | 0.3151 | 296.6 | 250.8 | |
|
previous
or next observation for the same group /

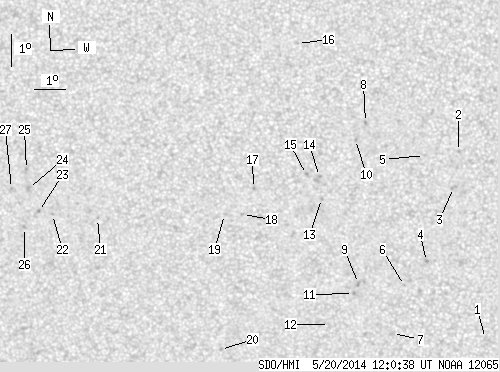

back to the solar disc SDO HMI 2014-05-20 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.14 | -22.42 | 150.57 | 0.58 | 181.55 | 0.3498 | -25.0 | -3.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -16.47 | 149.71 | -0.28 | 178.91 | 0.2502 | 855.0 | 546.9 | |
| 0.00 | 2.52 | 0.00 | 1.30 | -17.60 | 149.54 | -0.45 | 178.42 | 0.2694 | 714.0 | 675.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -19.95 | 148.66 | -1.33 | 175.95 | 0.3094 | 913.0 | 781.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -16.60 | 148.63 | -1.36 | 174.83 | 0.2533 | 716.0 | 431.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -20.71 | 147.94 | -2.05 | 174.04 | 0.3232 | 758.0 | 496.1 | |
| 2.16 | 2.25 | 1.14 | 1.19 | -22.26 | 147.53 | -2.46 | 173.43 | 0.3492 | -0.3 | -3.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.56 | 146.78 | -3.21 | 167.00 | 0.2409 | 889.0 | 779.2 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -20.64 | 146.45 | -3.54 | 169.73 | 0.3255 | 1006.0 | 822.2 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -16.09 | 146.45 | -3.54 | 166.28 | 0.2509 | 774.0 | 687.4 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -20.96 | 146.28 | -3.71 | 169.44 | 0.3312 | 877.0 | 662.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -21.96 | 145.47 | -4.52 | 167.88 | 0.3499 | 7.0 | 0.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.94 | 145.33 | -4.66 | 164.24 | 0.2858 | 800.0 | 634.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.25 | 145.29 | -4.70 | 163.37 | 0.2749 | 962.0 | 754.0 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -17.18 | 144.87 | -5.12 | 161.93 | 0.2759 | 834.0 | 657.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -13.10 | 144.70 | -5.29 | 154.89 | 0.2128 | 862.0 | 553.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.61 | 143.16 | -6.83 | 157.13 | 0.2928 | 807.0 | 607.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -18.43 | 142.78 | -7.21 | 157.12 | 0.3078 | 710.0 | 537.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.43 | 142.20 | -7.79 | 155.50 | 0.3116 | 699.0 | 502.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -22.75 | 141.83 | -8.16 | 159.70 | 0.3788 | 728.0 | 606.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -18.53 | 138.07 | -11.92 | 145.44 | 0.3468 | -734.0 | -573.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -18.39 | 136.60 | -13.39 | 142.10 | 0.3592 | -945.0 | -658.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -18.29 | 136.15 | -13.84 | 141.01 | 0.3626 | -917.0 | -743.5 | |
| 0.00 | 2.79 | 0.00 | 1.48 | -17.56 | 135.88 | -14.11 | 139.12 | 0.3566 | -807.0 | -678.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -16.96 | 135.86 | -14.13 | 137.90 | 0.3497 | -969.0 | -759.6 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -18.79 | 135.65 | -14.34 | 140.95 | 0.3739 | -712.0 | -559.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -17.56 | 135.32 | -14.67 | 138.03 | 0.3626 | -752.0 | -658.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
