SDO HMI 2014-05-20 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.47 | 53.98 | 22.77 | 163.73 | -13.02 | 230.11 | 80.67 | 257.14 | 0.9866 | 113.3 | 79.5 | |
|
previous
or next observation for the same group /

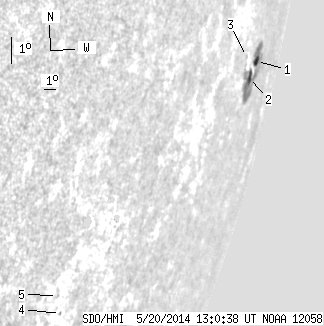

back to the solar disc SDO HMI 2014-05-20 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.24 | 51.28 | 10.22 | 158.44 | -12.65 | 230.66 | 81.22 | 257.52 | 0.9883 | 57.4 | 77.6 | |
| 4.23 | -1.00 | 12.55 | -1.00 | -13.17 | 230.00 | 80.56 | 256.99 | 0.9866 | 202.2 | 999999 | |
| 0.00 | 1.35 | 0.00 | 3.53 | -12.56 | 228.66 | 79.22 | 257.60 | 0.9826 | 272.0 | 296.5 | |
| 0.00 | 1.08 | 0.00 | 1.42 | -21.11 | 216.50 | 67.06 | 248.01 | 0.9281 | -176.0 | -166.9 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -20.55 | 215.75 | 66.31 | 248.53 | 0.9231 | -300.0 | -362.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
