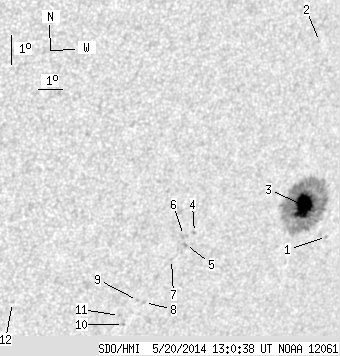

SDO HMI 2014-05-20 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.96 | 197.13 | 21.20 | 138.95 | -24.81 | 190.04 | 40.60 | 236.20 | 0.7130 | 549.5 | 244.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.59 | -25.67 | 191.88 | 42.44 | 236.07 | 0.7353 | 495.0 | 395.6 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -19.38 | 189.29 | 39.85 | 243.17 | 0.6797 | -549.0 | -517.5 | |
| 29.96 | 181.83 | 21.20 | 128.70 | -24.67 | 190.43 | 40.99 | 236.62 | 0.7160 | 1095.7 | 311.8 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -25.66 | 186.09 | 36.65 | 232.91 | 0.6769 | -615.0 | -548.8 | |
| 0.00 | 1.98 | 0.00 | 1.33 | -26.06 | 185.86 | 36.42 | 232.24 | 0.6770 | -604.0 | -545.4 | |
| 0.00 | 3.51 | 0.00 | 2.35 | -25.76 | 185.67 | 36.23 | 232.50 | 0.6732 | -753.0 | -599.0 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -26.57 | 185.46 | 36.02 | 231.31 | 0.6760 | -630.0 | -477.1 | |
| 0.00 | 1.35 | 0.00 | 0.91 | -28.03 | 184.86 | 35.42 | 229.05 | 0.6796 | -552.0 | -474.9 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -27.97 | 184.54 | 35.10 | 228.91 | 0.6761 | -660.0 | -498.6 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -28.79 | 184.26 | 34.82 | 227.69 | 0.6790 | -553.0 | -494.9 | |
| 0.00 | 1.35 | 0.00 | 0.90 | -28.49 | 183.98 | 34.54 | 227.87 | 0.6742 | -738.0 | -557.9 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -28.12 | 179.48 | 30.04 | 224.86 | 0.6282 | -377.0 | -311.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
