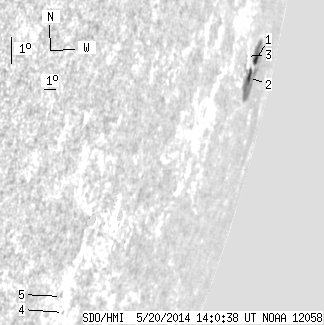

SDO HMI 2014-05-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.82 | 48.31 | 28.27 | 153.63 | -13.11 | 229.90 | 81.01 | 257.03 | 0.9874 | 139.1 | 54.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.51 | 46.06 | 11.70 | 150.26 | -12.63 | 230.50 | 81.61 | 257.53 | 0.9893 | 59.1 | 60.6 | |
| 5.31 | -1.00 | 16.57 | -1.00 | -13.22 | 229.90 | 81.01 | 256.94 | 0.9878 | 239.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.74 | -12.60 | 228.67 | 79.78 | 257.56 | 0.9843 | 280.0 | 297.0 | |
| 0.00 | 1.08 | 0.00 | 1.45 | -21.12 | 216.47 | 67.58 | 248.05 | 0.9312 | -209.0 | -209.1 | |
| 0.00 | 0.90 | 0.00 | 1.18 | -20.62 | 215.84 | 66.95 | 248.52 | 0.9271 | -377.0 | -397.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
