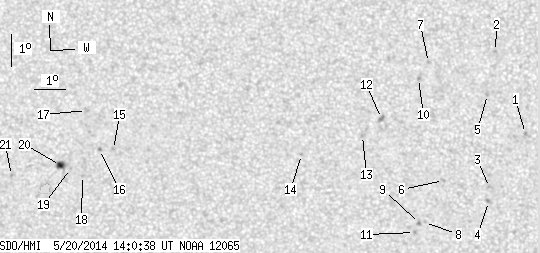

SDO HMI 2014-05-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 35.37 | 1.68 | 18.47 | -18.30 | 142.00 | -6.89 | 160.03 | 0.3164 | 367.2 | 280.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.79 | 149.91 | 1.02 | 183.56 | 0.2731 | 886.0 | 728.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -15.22 | 148.95 | 0.06 | 180.27 | 0.2289 | 859.0 | 623.4 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -19.50 | 148.76 | -0.13 | 179.58 | 0.3013 | 760.0 | 686.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.95 | 148.72 | -0.17 | 179.49 | 0.3087 | 1052.0 | 892.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -16.56 | 148.70 | -0.19 | 179.27 | 0.2518 | 650.0 | 481.1 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -19.28 | 147.28 | -1.61 | 174.88 | 0.2987 | 827.0 | 589.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -15.56 | 146.84 | -2.05 | 171.63 | 0.2373 | 973.0 | 681.6 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -20.61 | 146.65 | -2.24 | 173.44 | 0.3219 | 815.0 | 693.8 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -20.64 | 146.48 | -2.41 | 172.98 | 0.3228 | 1008.0 | 798.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -16.06 | 146.52 | -2.37 | 170.69 | 0.2465 | 857.0 | 739.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -20.93 | 146.32 | -2.57 | 172.62 | 0.3278 | 811.0 | 681.2 | |
| 0.00 | 3.06 | 0.00 | 1.57 | -17.31 | 145.33 | -3.56 | 167.31 | 0.2711 | 1061.0 | 850.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -17.84 | 144.71 | -4.18 | 165.71 | 0.2823 | 688.0 | 527.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -18.44 | 142.74 | -6.15 | 160.19 | 0.3014 | 821.0 | 598.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -18.24 | 136.66 | -12.23 | 144.26 | 0.3459 | -909.0 | -738.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -18.23 | 136.20 | -12.69 | 143.27 | 0.3503 | -939.0 | -734.5 | |
| 0.00 | 2.25 | 0.00 | 1.18 | -17.00 | 135.87 | -13.02 | 140.23 | 0.3383 | -823.0 | -740.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -19.05 | 135.58 | -13.31 | 143.43 | 0.3668 | -717.0 | -578.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -18.83 | 135.20 | -13.69 | 142.28 | 0.3677 | -771.0 | -649.5 | |
| 3.15 | 6.57 | 1.68 | 3.50 | -18.73 | 134.88 | -14.01 | 141.48 | 0.3697 | 598.9 | 173.5 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -19.03 | 133.23 | -15.66 | 138.97 | 0.3905 | -955.0 | -699.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
