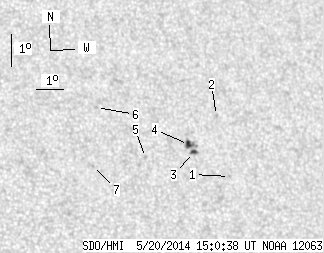

SDO HMI 2014-05-20 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.04 | 16.91 | 3.04 | 10.19 | 9.16 | 181.21 | 32.87 | 289.44 | 0.5703 | -448.9 | -436.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.61 | 8.23 | 182.93 | 34.60 | 287.04 | 0.5899 | -569.0 | -495.3 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 10.11 | 182.66 | 34.32 | 290.22 | 0.5938 | -707.0 | -595.2 | |
| 1.89 | 11.24 | 1.14 | 6.80 | 8.95 | 181.67 | 33.34 | 288.81 | 0.5757 | -876.8 | -693.9 | |
| 3.15 | -3.00 | 1.90 | -3.00 | 9.19 | 181.52 | 33.18 | 289.30 | 0.5746 | -997.7 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 8.76 | 179.91 | 31.57 | 289.41 | 0.5507 | -728.0 | -518.1 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 10.28 | 178.30 | 29.97 | 293.02 | 0.5361 | 638.0 | 567.7 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 8.48 | 178.02 | 29.69 | 289.98 | 0.5232 | 652.0 | 505.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
