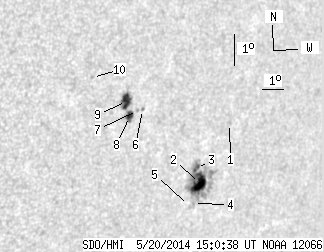

SDO HMI 2014-05-20 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.08 | 93.65 | 27.21 | 71.52 | -17.67 | 196.23 | 47.89 | 248.36 | 0.7623 | 136.0 | 102.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.27 | -16.42 | 198.08 | 49.75 | 250.42 | 0.7792 | 58.0 | 125.2 | |
| 18.53 | 64.86 | 14.47 | 50.68 | -18.34 | 197.31 | 48.97 | 247.80 | 0.7757 | 810.4 | 228.1 | |
| 2.88 | -2.00 | 2.23 | -2.00 | -17.87 | 196.99 | 48.65 | 248.31 | 0.7712 | 816.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.92 | -18.98 | 197.26 | 48.93 | 246.99 | 0.7768 | -52.0 | -77.5 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -19.05 | 197.05 | 48.71 | 246.84 | 0.7748 | -117.0 | -153.8 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -16.09 | 193.88 | 45.54 | 249.76 | 0.7332 | -455.0 | -421.8 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -16.12 | 193.66 | 45.32 | 249.65 | 0.7309 | -498.0 | -400.6 | |
| 5.31 | 22.04 | 3.82 | 15.80 | -16.32 | 193.36 | 45.02 | 249.30 | 0.7280 | -701.9 | -554.0 | |
| 9.36 | -8.00 | 6.69 | -8.00 | -15.85 | 193.09 | 44.75 | 249.84 | 0.7238 | -877.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -15.14 | 191.41 | 43.07 | 250.31 | 0.7024 | 585.0 | 427.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
