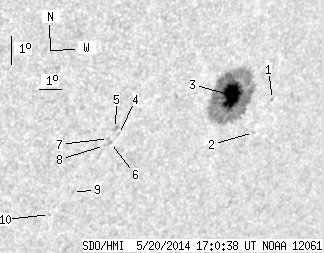

SDO HMI 2014-05-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.96 | 189.89 | 21.19 | 138.58 | -24.78 | 190.17 | 42.93 | 237.41 | 0.7363 | 625.3 | 263.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.75 | -24.78 | 192.34 | 45.11 | 238.39 | 0.7576 | -486.0 | -449.8 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -25.88 | 191.96 | 44.73 | 236.86 | 0.7585 | 424.0 | 398.2 | |
| 28.96 | 178.82 | 21.19 | 130.85 | -24.69 | 190.39 | 43.15 | 237.64 | 0.7380 | 1093.0 | 315.3 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -26.08 | 185.92 | 38.69 | 233.58 | 0.7001 | -496.0 | -356.3 | |
| 0.00 | 2.97 | 0.00 | 2.04 | -25.88 | 185.71 | 38.48 | 233.71 | 0.6969 | -667.0 | -668.5 | |
| 0.00 | 1.89 | 0.00 | 1.30 | -26.35 | 185.68 | 38.45 | 233.09 | 0.6992 | -528.0 | -423.5 | |
| 0.00 | 1.35 | 0.00 | 0.93 | -26.22 | 185.54 | 38.31 | 233.18 | 0.6971 | -720.0 | -555.9 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -26.45 | 185.46 | 38.23 | 232.83 | 0.6976 | -644.0 | -525.7 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -28.05 | 184.71 | 37.48 | 230.35 | 0.6997 | -544.0 | -463.2 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -28.81 | 184.03 | 36.80 | 228.98 | 0.6980 | -623.0 | -549.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
