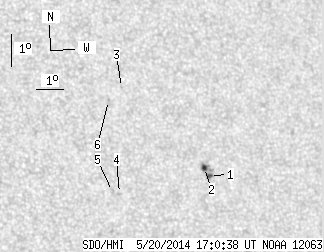

SDO HMI 2014-05-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.14 | 14.66 | 2.53 | 8.89 | 9.20 | 180.71 | 33.48 | 289.18 | 0.5787 | -66.8 | -250.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 10.52 | 0.99 | 6.45 | 8.97 | 181.72 | 34.49 | 288.29 | 0.5913 | -884.3 | -670.9 | |
| 2.52 | -1.00 | 1.54 | -1.00 | 9.22 | 181.56 | 34.33 | 288.77 | 0.5901 | -980.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 11.65 | 178.80 | 31.57 | 294.30 | 0.5647 | 344.0 | 396.0 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 8.35 | 178.36 | 31.13 | 288.92 | 0.5429 | 638.0 | 388.8 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 8.41 | 178.12 | 30.89 | 289.16 | 0.5397 | 369.0 | 346.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 11.23 | 178.27 | 31.04 | 293.95 | 0.5556 | 599.0 | 542.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
