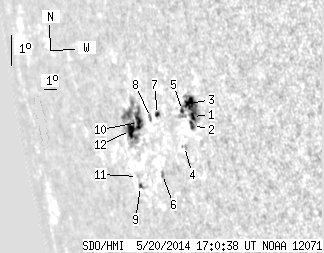

SDO HMI 2014-05-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.06 | 110.92 | 39.23 | 147.15 | -11.41 | 79.21 | -68.02 | 101.49 | 0.9285 | -56.2 | -12.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.43 | 40.03 | 2.84 | 47.06 | -11.25 | 82.35 | -64.88 | 101.47 | 0.9079 | 665.0 | 308.1 | |
| 2.16 | -1.00 | 2.54 | -1.00 | -11.53 | 82.23 | -65.00 | 101.76 | 0.9089 | 401.8 | 999999 | |
| 7.92 | -1.00 | 9.28 | -1.00 | -10.85 | 82.30 | -64.93 | 101.02 | 0.9081 | 551.5 | 999999 | |
| 0.00 | 2.70 | 0.00 | 3.29 | -12.15 | 81.33 | -65.90 | 102.39 | 0.9154 | 343.0 | 234.8 | |
| 1.35 | -1.00 | 1.62 | -1.00 | -11.05 | 81.69 | -65.54 | 101.21 | 0.9125 | -86.1 | 999999 | |
| 0.00 | 2.43 | 0.00 | 3.24 | -12.95 | 79.14 | -68.09 | 103.13 | 0.9301 | 417.0 | 288.7 | |
| 1.80 | 3.33 | 2.34 | 4.32 | -11.10 | 79.70 | -67.53 | 101.17 | 0.9259 | -529.5 | -428.7 | |
| 0.00 | 2.79 | 0.00 | 3.72 | -11.18 | 79.08 | -68.15 | 101.23 | 0.9299 | -427.0 | -315.6 | |
| 1.17 | 3.42 | 1.71 | 5.00 | -13.25 | 76.99 | -70.24 | 103.35 | 0.9429 | -429.6 | -384.2 | |
| 5.58 | 55.50 | 7.80 | 79.46 | -11.30 | 77.99 | -69.24 | 101.31 | 0.9367 | -697.2 | -146.7 | |
| 0.00 | 0.72 | 0.00 | 1.06 | -12.94 | 76.92 | -70.31 | 103.01 | 0.9433 | -329.0 | -323.5 | |
| 7.65 | -10.00 | 11.10 | -10.00 | -11.52 | 77.14 | -70.09 | 101.51 | 0.9417 | -262.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
