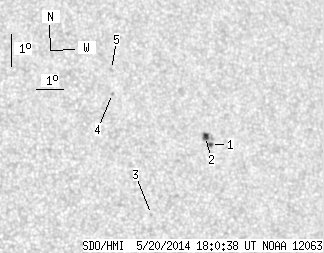

SDO HMI 2014-05-20 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.32 | 13.76 | 2.67 | 8.43 | 9.31 | 180.85 | 34.17 | 289.02 | 0.5885 | -89.5 | -230.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 10.25 | 0.67 | 6.33 | 8.96 | 181.72 | 35.05 | 288.00 | 0.5987 | -853.5 | -651.9 | |
| 3.24 | -1.00 | 2.00 | -1.00 | 9.20 | 181.56 | 34.89 | 288.47 | 0.5975 | -921.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 6.75 | 179.34 | 32.66 | 285.37 | 0.5579 | 567.0 | 399.7 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 10.47 | 178.28 | 31.60 | 292.30 | 0.5591 | 646.0 | 513.4 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 11.22 | 178.33 | 31.66 | 293.52 | 0.5636 | 695.0 | 564.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
