SDO HMI 2014-05-20 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.08 | 177.39 | 26.28 | 133.04 | -24.77 | 190.21 | 44.64 | 238.18 | 0.7531 | 792.1 | 275.1 | |
|
previous
or next observation for the same group /

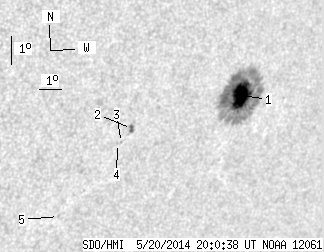

back to the solar disc SDO HMI 2014-05-20 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.37 | 171.54 | 25.07 | 128.91 | -24.71 | 190.36 | 44.79 | 238.33 | 0.7543 | 1023.2 | 296.8 | |
| 1.71 | 3.51 | 1.21 | 2.48 | -25.90 | 185.85 | 40.28 | 234.67 | 0.7152 | -709.2 | -588.3 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -26.38 | 185.60 | 40.03 | 233.94 | 0.7152 | -420.0 | -356.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -26.41 | 185.44 | 39.87 | 233.80 | 0.7138 | -649.0 | -587.3 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -28.91 | 183.89 | 38.33 | 229.80 | 0.7131 | -531.0 | -456.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
