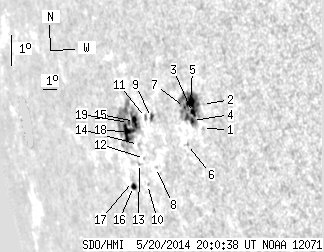

SDO HMI 2014-05-20 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.23 | 144.47 | 37.69 | 178.71 | -11.36 | 79.35 | -66.21 | 101.53 | 0.9165 | -118.9 | -14.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-20 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.36 | -11.60 | 82.93 | -62.63 | 102.00 | 0.8912 | 178.0 | 158.8 | |
| 0.00 | 1.08 | 0.00 | 1.16 | -10.86 | 83.22 | -62.35 | 101.20 | 0.8887 | 344.0 | 305.2 | |
| 2.16 | 54.24 | 2.37 | 59.92 | -11.09 | 82.45 | -63.11 | 101.40 | 0.8947 | 742.5 | 225.4 | |
| 1.80 | -3.00 | 1.99 | -3.00 | -11.33 | 82.35 | -63.21 | 101.66 | 0.8956 | 513.5 | 999999 | |
| 5.85 | -3.00 | 6.43 | -3.00 | -10.78 | 82.43 | -63.13 | 101.05 | 0.8947 | 675.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 1.02 | -12.05 | 81.70 | -63.87 | 102.42 | 0.9008 | 370.0 | 306.3 | |
| 0.54 | -3.00 | 0.60 | -3.00 | -10.92 | 81.96 | -63.60 | 101.18 | 0.8984 | -0.2 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.79 | -12.68 | 79.00 | -66.57 | 102.94 | 0.9201 | 209.0 | 168.4 | |
| 1.35 | 3.33 | 1.65 | 4.08 | -11.15 | 79.44 | -66.13 | 101.29 | 0.9166 | -615.9 | -522.5 | |
| 0.00 | 0.81 | 0.00 | 1.05 | -13.18 | 78.08 | -67.49 | 103.42 | 0.9263 | 63.0 | 89.4 | |
| 0.00 | 1.53 | 0.00 | 1.91 | -11.13 | 78.98 | -66.59 | 101.25 | 0.9197 | -419.0 | -335.1 | |
| 0.00 | 0.90 | 0.00 | 1.16 | -12.38 | 78.28 | -67.29 | 102.57 | 0.9248 | 298.0 | 234.6 | |
| 0.00 | 0.90 | 0.00 | 1.18 | -12.52 | 77.79 | -67.78 | 102.69 | 0.9280 | -175.0 | -108.1 | |
| 0.00 | 1.53 | 0.00 | 1.99 | -11.94 | 78.02 | -67.55 | 102.08 | 0.9263 | -400.0 | -355.1 | |
| 4.86 | 72.32 | 6.30 | 96.21 | -11.22 | 78.05 | -67.52 | 101.31 | 0.9259 | -645.9 | -135.2 | |
| 2.43 | 3.78 | 3.32 | 5.16 | -13.21 | 76.88 | -68.69 | 103.38 | 0.9338 | -394.1 | -367.2 | |
| 0.00 | 1.26 | 0.00 | 1.72 | -13.05 | 76.89 | -68.68 | 103.21 | 0.9337 | -545.0 | -472.3 | |
| 10.25 | -15.00 | 13.72 | -15.00 | -11.54 | 77.39 | -68.18 | 101.62 | 0.9302 | -426.5 | 999999 | |
| 0.99 | -15.00 | 1.31 | -15.00 | -11.24 | 77.54 | -68.02 | 101.30 | 0.9291 | -362.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
