SDO HMI 2014-05-20 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.49 | 19.17 | 29.59 | 105.83 | -13.13 | 230.08 | 85.07 | 257.00 | 0.9961 | 103.1 | 82.4 | |
|
previous
or next observation for the same group /

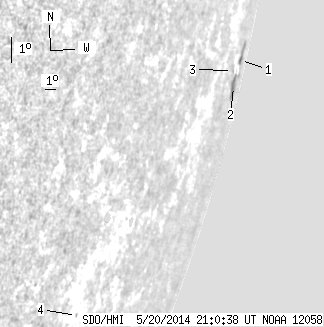

back to the solar disc SDO HMI 2014-05-20 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 7.83 | 8.32 | 46.92 | -12.66 | 230.41 | 85.40 | 257.47 | 0.9967 | -143.4 | 77.5 | |
| 4.05 | 9.90 | 21.27 | 53.44 | -13.48 | 230.04 | 85.03 | 256.64 | 0.9961 | 208.7 | 60.3 | |
| 0.00 | 1.17 | 0.00 | 5.04 | -13.03 | 228.60 | 83.59 | 257.11 | 0.9937 | 255.0 | 288.8 | |
| 0.00 | 0.27 | 0.00 | 0.43 | -21.22 | 216.57 | 71.56 | 248.34 | 0.9529 | -243.0 | -244.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
