SDO HMI 2014-05-20 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 31.77 | 0.00 | 16.51 | -18.79 | 143.35 | -1.11 | 176.29 | 0.3019 | 353.6 | 178.7 | |
|
previous
or next observation for the same group /

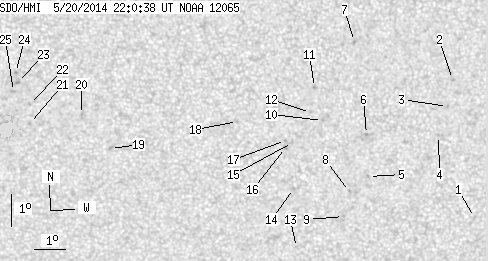

back to the solar disc SDO HMI 2014-05-20 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.76 | -21.46 | 150.69 | 6.23 | 196.88 | 0.3494 | 695.0 | 533.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.07 | 149.83 | 5.37 | 199.00 | 0.2760 | 774.0 | 624.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -17.93 | 149.69 | 5.24 | 197.57 | 0.2888 | 936.0 | 793.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.84 | 149.43 | 4.97 | 195.82 | 0.3022 | 926.0 | 740.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -20.15 | 147.20 | 2.75 | 188.22 | 0.3158 | 975.0 | 727.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.81 | 147.12 | 2.66 | 188.65 | 0.2935 | 958.0 | 778.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.89 | 146.70 | 2.24 | 188.92 | 0.2437 | 889.0 | 770.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -20.63 | 146.59 | 2.14 | 186.24 | 0.3224 | 884.0 | 692.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -21.43 | 146.41 | 1.95 | 185.45 | 0.3353 | 701.0 | 498.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -18.37 | 145.70 | 1.25 | 184.20 | 0.2835 | 787.0 | 619.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.33 | 145.44 | 0.99 | 183.56 | 0.2657 | 987.0 | 720.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -18.12 | 145.32 | 0.86 | 182.95 | 0.2788 | 813.0 | 615.1 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -22.43 | 144.88 | 0.42 | 181.12 | 0.3503 | -3.0 | -0.6 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -20.53 | 144.78 | 0.32 | 180.95 | 0.3189 | 829.0 | 478.5 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -19.07 | 144.74 | 0.29 | 180.93 | 0.2944 | 894.0 | 736.9 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -19.22 | 144.52 | 0.06 | 180.20 | 0.2970 | 770.0 | 657.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -19.00 | 144.52 | 0.06 | 180.21 | 0.2933 | 949.0 | 715.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -18.40 | 142.99 | -1.47 | 175.07 | 0.2842 | 837.0 | 552.0 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -19.24 | 138.89 | -5.57 | 162.82 | 0.3114 | -837.0 | -676.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -18.16 | 138.00 | -6.46 | 158.97 | 0.2993 | -724.0 | -591.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.43 | 136.31 | -8.15 | 154.58 | 0.3146 | -774.0 | -615.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -17.83 | 136.34 | -8.12 | 153.77 | 0.3055 | -811.0 | -617.7 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -17.14 | 135.99 | -8.47 | 151.67 | 0.2980 | -977.0 | -795.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -16.83 | 135.94 | -8.52 | 151.00 | 0.2938 | -900.0 | -780.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -17.42 | 135.84 | -8.61 | 151.75 | 0.3032 | -737.0 | -713.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
