SDO HMI 2014-05-20 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.35 | 80.79 | 22.40 | 67.03 | -17.82 | 196.32 | 51.86 | 249.17 | 0.8030 | 147.1 | 75.9 | |
|
previous
or next observation for the same group /

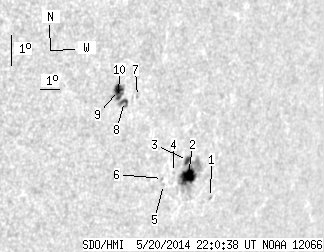

back to the solar disc SDO HMI 2014-05-20 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.43 | -19.14 | 198.99 | 54.53 | 248.16 | 0.8310 | -395.0 | -335.1 | |
| 14.03 | 53.80 | 11.96 | 45.89 | -18.48 | 197.48 | 53.02 | 248.62 | 0.8159 | 684.1 | 228.8 | |
| 2.70 | -2.00 | 2.28 | -2.00 | -18.01 | 197.22 | 52.76 | 249.13 | 0.8125 | 702.7 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.05 | -18.41 | 196.65 | 52.20 | 248.52 | 0.8078 | 182.0 | 180.1 | |
| 0.00 | 1.08 | 0.00 | 0.90 | -18.80 | 196.30 | 51.84 | 247.96 | 0.8053 | 571.0 | 469.2 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -18.61 | 196.16 | 51.71 | 248.15 | 0.8036 | 407.0 | 399.4 | |
| 0.00 | 1.08 | 0.00 | 0.84 | -16.07 | 193.94 | 49.48 | 250.78 | 0.7759 | -488.0 | -340.4 | |
| 2.34 | 21.23 | 1.81 | 16.32 | -16.24 | 193.37 | 48.91 | 250.43 | 0.7702 | -632.1 | -482.0 | |
| 6.75 | -8.00 | 5.17 | -8.00 | -15.91 | 192.97 | 48.51 | 250.76 | 0.7653 | -776.4 | 999999 | |
| 1.53 | -8.00 | 1.18 | -8.00 | -16.13 | 193.04 | 48.58 | 250.50 | 0.7665 | -739.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
