SDO HMI 2014-05-20 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.15 | 162.31 | 45.54 | 191.95 | -11.33 | 79.39 | -65.07 | 101.56 | 0.9085 | -154.2 | -48.1 | |
|
previous
or next observation for the same group /

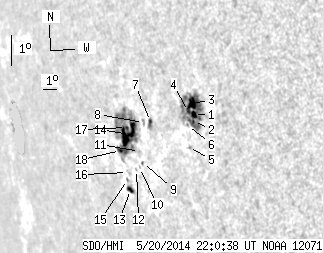

back to the solar disc SDO HMI 2014-05-20 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.97 | 64.15 | 3.14 | 67.94 | -11.00 | 82.53 | -61.93 | 101.38 | 0.8854 | 760.6 | 239.6 | |
| 0.90 | -1.00 | 0.96 | -1.00 | -11.21 | 82.45 | -62.01 | 101.62 | 0.8862 | 607.7 | 999999 | |
| 7.65 | -1.00 | 8.08 | -1.00 | -10.66 | 82.52 | -61.94 | 101.00 | 0.8853 | 648.7 | 999999 | |
| 2.25 | -1.00 | 2.40 | -1.00 | -10.90 | 82.23 | -62.23 | 101.25 | 0.8877 | 364.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.88 | -12.00 | 81.80 | -62.66 | 102.45 | 0.8917 | 467.0 | 440.8 | |
| 0.00 | 1.08 | 0.00 | 1.16 | -11.32 | 82.00 | -62.46 | 101.71 | 0.8897 | 173.0 | 105.2 | |
| 1.17 | 4.95 | 1.38 | 5.83 | -11.12 | 79.47 | -64.98 | 101.33 | 0.9086 | -608.0 | -542.9 | |
| 0.00 | 2.25 | 0.00 | 2.69 | -11.13 | 78.94 | -65.51 | 101.31 | 0.9123 | -465.0 | -299.8 | |
| 0.00 | 1.08 | 0.00 | 1.33 | -12.35 | 78.29 | -66.16 | 102.61 | 0.9173 | 58.0 | 110.6 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -12.50 | 77.98 | -66.47 | 102.75 | 0.9194 | 189.0 | 198.0 | |
| 0.00 | 1.26 | 0.00 | 1.56 | -12.01 | 78.23 | -66.23 | 102.23 | 0.9176 | -416.0 | -368.3 | |
| 0.00 | 0.72 | 0.00 | 0.91 | -12.55 | 77.72 | -66.74 | 102.79 | 0.9212 | -43.0 | -74.8 | |
| 2.97 | 4.50 | 3.88 | 5.87 | -13.15 | 76.90 | -67.55 | 103.39 | 0.9268 | -470.5 | -344.2 | |
| 17.18 | 78.72 | 21.73 | 100.16 | -11.46 | 77.63 | -66.83 | 101.60 | 0.9214 | -556.7 | -189.7 | |
| 0.00 | 1.08 | 0.00 | 1.41 | -12.84 | 76.83 | -67.62 | 103.05 | 0.9271 | -533.0 | -578.0 | |
| 0.00 | 1.44 | 0.00 | 1.87 | -12.62 | 76.95 | -67.50 | 102.82 | 0.9262 | -634.0 | -563.1 | |
| 0.90 | -14.00 | 1.14 | -14.00 | -11.25 | 77.57 | -66.88 | 101.36 | 0.9217 | -478.6 | 999999 | |
| 2.16 | -14.00 | 2.83 | -14.00 | -11.93 | 76.75 | -67.71 | 102.07 | 0.9273 | -349.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
