SDO HMI 2014-05-21 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.54 | 174.07 | 21.94 | 138.17 | -24.84 | 190.00 | 47.75 | 239.29 | 0.7834 | 538.5 | 254.0 | |
|
previous
or next observation for the same group /

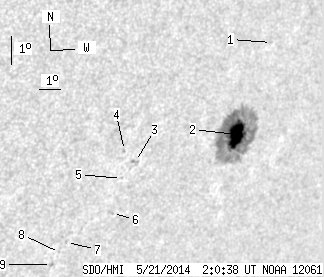

back to the solar disc SDO HMI 2014-05-21 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.71 | -21.73 | 190.53 | 48.28 | 243.31 | 0.7783 | -569.0 | -432.2 | |
| 27.54 | 164.62 | 21.94 | 131.15 | -24.75 | 190.24 | 47.99 | 239.51 | 0.7853 | 928.7 | 299.2 | |
| 0.00 | 2.52 | 0.00 | 1.87 | -25.75 | 185.84 | 43.59 | 236.48 | 0.7473 | -677.0 | -528.7 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -25.40 | 185.17 | 42.93 | 236.60 | 0.7392 | -536.0 | -459.9 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -26.32 | 185.45 | 43.21 | 235.58 | 0.7462 | -519.0 | -388.4 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -27.50 | 185.59 | 43.35 | 234.21 | 0.7529 | -515.0 | -419.6 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -28.52 | 183.94 | 41.69 | 232.14 | 0.7426 | -611.0 | -465.6 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -28.86 | 183.78 | 41.54 | 231.64 | 0.7429 | -463.0 | -399.4 | |
| 0.00 | 1.53 | 0.00 | 1.13 | -29.28 | 183.61 | 41.37 | 231.05 | 0.7436 | -362.0 | -360.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
