SDO HMI 2014-05-21 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 43.29 | 0.00 | 22.48 | -18.35 | 143.61 | 2.46 | 187.79 | 0.2966 | 415.8 | 311.1 | |
|
previous
or next observation for the same group /

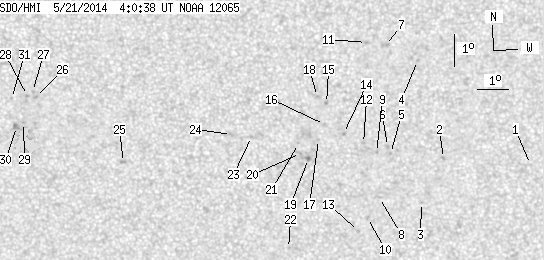

back to the solar disc SDO HMI 2014-05-21 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.32 | 152.07 | 10.93 | 210.92 | 0.3497 | -4.0 | 3.2 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -19.14 | 149.23 | 8.08 | 204.21 | 0.3253 | 804.0 | 625.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -20.55 | 148.58 | 7.43 | 200.81 | 0.3425 | 615.0 | 546.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -16.06 | 148.27 | 7.12 | 206.07 | 0.2723 | 904.0 | 765.3 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -18.99 | 147.51 | 6.36 | 199.69 | 0.3123 | 842.0 | 721.4 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -18.77 | 147.40 | 6.26 | 199.65 | 0.3083 | 812.0 | 717.8 | |
| 0.00 | 3.33 | 0.00 | 1.71 | -15.59 | 147.23 | 6.09 | 203.45 | 0.2579 | 778.0 | 627.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -20.39 | 147.20 | 6.06 | 197.38 | 0.3326 | 734.0 | 585.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.96 | 147.05 | 5.91 | 198.43 | 0.3094 | 872.0 | 685.9 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -21.03 | 146.84 | 5.69 | 195.82 | 0.3410 | 673.0 | 618.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.50 | 146.63 | 5.49 | 201.49 | 0.2526 | 900.0 | 748.4 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -18.67 | 146.63 | 5.48 | 197.47 | 0.3027 | 743.0 | 560.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.48 | 146.56 | 5.41 | 194.72 | 0.3469 | 719.0 | 568.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.36 | 145.97 | 4.83 | 195.81 | 0.2945 | 736.0 | 712.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.41 | 145.41 | 4.26 | 194.91 | 0.2767 | 981.0 | 767.8 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -18.07 | 145.36 | 4.21 | 194.13 | 0.2873 | 747.0 | 435.5 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -18.55 | 145.18 | 4.03 | 193.15 | 0.2943 | 775.0 | 578.1 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -17.19 | 145.12 | 3.97 | 194.14 | 0.2719 | 883.0 | 683.8 | |
| 0.00 | 2.52 | 0.00 | 1.31 | -19.15 | 144.87 | 3.72 | 191.73 | 0.3030 | 944.0 | 808.4 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -18.99 | 144.61 | 3.46 | 191.04 | 0.2995 | 831.0 | 643.9 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -18.68 | 144.54 | 3.39 | 191.04 | 0.2941 | 799.0 | 668.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -22.04 | 144.28 | 3.14 | 188.41 | 0.3482 | 722.0 | 620.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -18.45 | 143.03 | 1.88 | 186.27 | 0.2866 | 788.0 | 665.6 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -18.39 | 142.39 | 1.24 | 184.17 | 0.2846 | 660.0 | 583.0 | |
| 0.00 | 2.52 | 0.00 | 1.31 | -19.27 | 138.92 | -2.22 | 172.98 | 0.3009 | -899.0 | -739.3 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -17.21 | 136.15 | -4.99 | 162.44 | 0.2769 | -980.0 | -752.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -17.02 | 136.06 | -5.08 | 161.93 | 0.2744 | -877.0 | -744.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -17.15 | 135.90 | -5.25 | 161.54 | 0.2772 | -875.0 | -735.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.00 | 135.74 | -5.40 | 162.03 | 0.2915 | -686.0 | -536.3 | |
| 0.00 | 3.24 | 0.00 | 1.68 | -18.12 | 135.51 | -5.63 | 161.47 | 0.2947 | -265.0 | -276.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -17.24 | 135.38 | -5.76 | 160.00 | 0.2815 | -787.0 | -540.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
