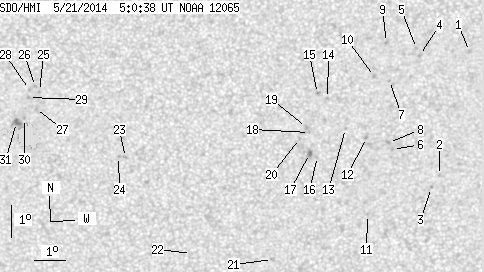

SDO HMI 2014-05-21 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 43.74 | 0.00 | 22.69 | -18.26 | 143.04 | 2.44 | 187.83 | 0.2972 | 363.9 | 312.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.70 | -15.92 | 149.88 | 9.28 | 212.72 | 0.2882 | 795.0 | 645.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -19.83 | 149.10 | 8.51 | 204.38 | 0.3386 | 743.0 | 591.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -20.22 | 148.86 | 8.27 | 203.29 | 0.3427 | 867.0 | 629.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -16.05 | 148.29 | 7.69 | 207.84 | 0.2766 | 756.0 | 583.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -15.83 | 148.18 | 7.59 | 207.91 | 0.2726 | 869.0 | 746.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -19.01 | 147.54 | 6.94 | 201.29 | 0.3161 | 806.0 | 663.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -16.83 | 147.36 | 6.76 | 203.71 | 0.2816 | 743.0 | 622.3 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -18.79 | 147.40 | 6.80 | 201.17 | 0.3119 | 959.0 | 700.1 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -15.64 | 147.23 | 6.63 | 205.17 | 0.2626 | 825.0 | 650.2 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -16.71 | 146.88 | 6.28 | 202.37 | 0.2766 | 743.0 | 609.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.09 | 146.81 | 6.21 | 197.13 | 0.3444 | 808.0 | 585.8 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -18.63 | 146.69 | 6.09 | 199.31 | 0.3053 | 767.0 | 531.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.35 | 146.00 | 5.40 | 197.58 | 0.2973 | 901.0 | 702.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.40 | 145.40 | 4.80 | 196.70 | 0.2792 | 934.0 | 590.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.25 | 145.08 | 4.48 | 195.80 | 0.2751 | 970.0 | 750.8 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -19.24 | 145.13 | 4.53 | 194.10 | 0.3075 | 601.0 | 455.1 | |
| 0.00 | 3.60 | 0.00 | 1.87 | -19.14 | 144.87 | 4.27 | 193.39 | 0.3049 | 964.0 | 876.1 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -18.48 | 144.85 | 4.25 | 193.90 | 0.2941 | 944.0 | 716.8 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -18.32 | 144.75 | 4.15 | 193.72 | 0.2911 | 1024.0 | 822.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.67 | 144.53 | 3.94 | 192.75 | 0.2960 | 757.0 | 672.9 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -22.54 | 143.74 | 3.15 | 188.20 | 0.3566 | 611.0 | 513.6 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -22.35 | 141.08 | 0.48 | 181.28 | 0.3498 | 23.0 | 7.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -19.27 | 138.95 | -1.65 | 174.79 | 0.2999 | -881.0 | -714.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -19.23 | 138.73 | -1.87 | 174.07 | 0.2997 | -695.0 | -614.8 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -17.17 | 136.24 | -4.36 | 164.53 | 0.2734 | -790.0 | -596.1 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -17.01 | 136.12 | -4.48 | 163.95 | 0.2714 | -861.0 | -653.1 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -17.71 | 136.10 | -4.50 | 164.60 | 0.2827 | -538.0 | -591.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -17.11 | 135.92 | -4.67 | 163.40 | 0.2738 | -892.0 | -728.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -17.36 | 135.88 | -4.71 | 163.54 | 0.2781 | -843.0 | -584.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.02 | 135.74 | -4.86 | 163.76 | 0.2894 | -706.0 | -563.4 | |
| 0.00 | 5.76 | 0.00 | 2.98 | -18.15 | 135.48 | -5.12 | 163.08 | 0.2926 | 77.0 | -23.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
