SDO HMI 2014-05-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.03 | 166.29 | 21.04 | 139.50 | -24.85 | 190.02 | 50.51 | 240.23 | 0.8088 | 803.3 | 235.5 | |
|
previous
or next observation for the same group /

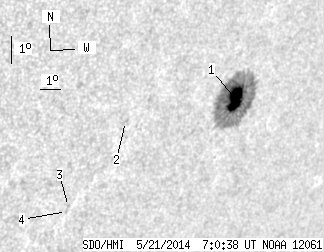

back to the solar disc SDO HMI 2014-05-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.03 | 161.79 | 21.04 | 136.04 | -24.79 | 190.16 | 50.65 | 240.36 | 0.8099 | 1000.6 | 256.5 | |
| 0.00 | 2.16 | 0.00 | 1.66 | -25.68 | 185.06 | 45.56 | 237.40 | 0.7661 | -568.0 | -513.0 | |
| 0.00 | 1.17 | 0.00 | 0.90 | -28.57 | 183.79 | 44.29 | 233.33 | 0.7668 | -654.0 | -484.7 | |
| 0.00 | 1.17 | 0.00 | 0.90 | -28.74 | 183.79 | 44.28 | 233.13 | 0.7675 | -518.0 | -348.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
