SDO HMI 2014-05-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.97 | 95.33 | 1.54 | 49.52 | -18.41 | 139.54 | 0.04 | 179.52 | 0.2982 | 521.7 | 316.5 | |
|
previous
or next observation for the same group /

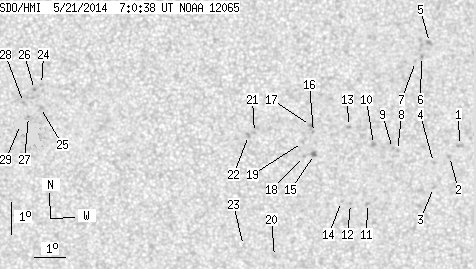

back to the solar disc SDO HMI 2014-05-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.79 | 0.00 | 1.47 | -18.89 | 149.62 | 10.12 | 209.67 | 0.3372 | 884.0 | 651.8 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -19.24 | 149.31 | 9.81 | 208.40 | 0.3397 | 836.0 | 682.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -20.23 | 148.85 | 9.35 | 205.89 | 0.3505 | 707.0 | 537.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -19.43 | 148.80 | 9.30 | 206.88 | 0.3386 | 729.0 | 545.9 | |
| 0.00 | 2.61 | 0.00 | 1.35 | -15.65 | 148.48 | 8.98 | 212.38 | 0.2821 | 927.0 | 775.4 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -16.09 | 148.25 | 8.75 | 210.86 | 0.2862 | 852.0 | 738.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -16.25 | 148.06 | 8.56 | 210.04 | 0.2868 | 719.0 | 549.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -19.05 | 147.61 | 8.11 | 204.38 | 0.3246 | 909.0 | 694.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -18.99 | 147.45 | 7.95 | 204.02 | 0.3225 | 757.0 | 625.9 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -18.87 | 146.83 | 7.33 | 202.51 | 0.3165 | 955.0 | 840.0 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -20.75 | 146.72 | 7.21 | 200.02 | 0.3446 | 899.0 | 751.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -20.75 | 146.16 | 6.66 | 198.59 | 0.3416 | 767.0 | 656.0 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -18.30 | 146.00 | 6.50 | 200.88 | 0.3027 | 822.0 | 636.9 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -20.69 | 145.86 | 6.36 | 197.88 | 0.3391 | 687.0 | 631.3 | |
| 0.00 | 2.70 | 0.00 | 1.41 | -19.19 | 144.93 | 5.43 | 196.79 | 0.3109 | 936.0 | 879.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -18.49 | 144.88 | 5.38 | 197.34 | 0.2996 | 899.0 | 789.8 | |
| 0.00 | 2.61 | 0.00 | 1.35 | -18.27 | 144.78 | 5.28 | 197.26 | 0.2956 | 1054.0 | 884.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.25 | 144.61 | 5.11 | 195.79 | 0.3105 | 755.0 | 606.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -18.81 | 144.53 | 5.03 | 195.98 | 0.3030 | 877.0 | 701.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -22.46 | 143.73 | 4.23 | 191.01 | 0.3585 | 747.0 | 646.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -18.49 | 142.99 | 3.49 | 191.45 | 0.2918 | 954.0 | 784.7 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -18.59 | 142.80 | 3.29 | 190.77 | 0.2927 | 808.0 | 646.8 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -22.11 | 142.70 | 3.20 | 188.54 | 0.3499 | 14.0 | 5.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -16.97 | 136.20 | -3.30 | 168.00 | 0.2661 | -808.0 | -603.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -17.70 | 136.15 | -3.35 | 168.41 | 0.2782 | -772.0 | -585.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -17.13 | 135.97 | -3.53 | 167.34 | 0.2695 | -980.0 | -801.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -17.98 | 135.76 | -3.74 | 167.34 | 0.2842 | -629.0 | -531.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.54 | 135.61 | -3.89 | 166.47 | 0.2776 | -645.0 | -484.9 | |
| 2.97 | 54.29 | 1.54 | 28.12 | -18.23 | 135.50 | -4.00 | 166.70 | 0.2893 | 487.6 | 175.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
