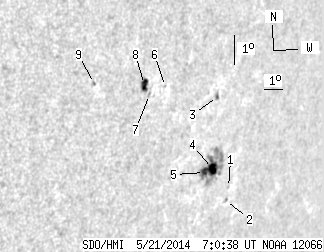

SDO HMI 2014-05-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.76 | 65.36 | 13.74 | 62.41 | -18.14 | 197.09 | 57.58 | 249.88 | 0.8558 | 92.7 | 121.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.64 | -19.12 | 199.24 | 59.74 | 249.13 | 0.8753 | -239.0 | -273.6 | |
| 0.00 | 1.89 | 0.00 | 1.93 | -19.54 | 199.30 | 59.79 | 248.67 | 0.8763 | -259.0 | -255.4 | |
| 0.63 | 2.52 | 0.60 | 2.38 | -16.29 | 197.07 | 57.57 | 252.02 | 0.8538 | 313.0 | 247.6 | |
| 7.56 | 49.16 | 7.39 | 48.00 | -18.55 | 197.91 | 58.40 | 249.55 | 0.8638 | 707.4 | 214.6 | |
| 1.35 | -4.00 | 1.31 | -4.00 | -18.69 | 197.49 | 57.99 | 249.32 | 0.8606 | 756.9 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -16.06 | 194.01 | 54.51 | 251.79 | 0.8258 | -218.0 | -144.0 | |
| 0.00 | 1.80 | 0.00 | 1.55 | -16.33 | 193.25 | 53.75 | 251.32 | 0.8191 | -389.0 | -457.3 | |
| 5.22 | 7.65 | 4.44 | 6.51 | -16.03 | 192.86 | 53.36 | 251.61 | 0.8149 | -665.2 | -517.8 | |
| 0.00 | 1.44 | 0.00 | 1.16 | -16.06 | 190.29 | 50.79 | 251.04 | 0.7895 | -612.0 | -417.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
