SDO HMI 2014-05-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.93 | 219.42 | 43.93 | 222.90 | -11.36 | 78.99 | -60.51 | 101.94 | 0.8734 | -191.5 | -107.6 | |
|
previous
or next observation for the same group /

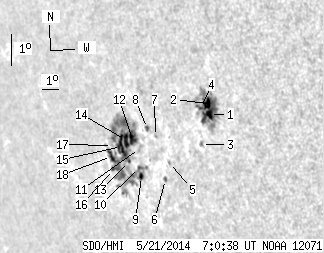

back to the solar disc SDO HMI 2014-05-21 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.23 | 63.66 | 3.82 | 57.63 | -10.72 | 82.98 | -56.52 | 101.55 | 0.8386 | 900.1 | 344.3 | |
| 5.49 | -1.00 | 4.97 | -1.00 | -10.38 | 82.96 | -56.54 | 101.14 | 0.8385 | 868.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.50 | -11.63 | 82.24 | -57.26 | 102.55 | 0.8461 | 458.0 | 430.6 | |
| 0.63 | -1.00 | 0.58 | -1.00 | -10.52 | 82.52 | -56.98 | 101.27 | 0.8426 | 201.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.15 | -12.13 | 80.17 | -59.33 | 102.92 | 0.8648 | 223.0 | 320.0 | |
| 0.63 | 1.62 | 0.63 | 1.61 | -12.64 | 79.72 | -59.78 | 103.47 | 0.8690 | 364.4 | 383.8 | |
| 0.00 | 1.44 | 0.00 | 1.43 | -11.30 | 79.60 | -59.91 | 101.92 | 0.8691 | -325.0 | -300.1 | |
| 1.08 | 2.43 | 1.09 | 2.45 | -11.05 | 79.19 | -60.32 | 101.59 | 0.8724 | -561.9 | -431.1 | |
| 2.25 | 143.61 | 2.34 | 153.10 | -12.50 | 78.25 | -61.25 | 103.17 | 0.8810 | 356.7 | -298.4 | |
| 0.90 | -9.00 | 0.94 | -9.00 | -12.22 | 78.23 | -61.27 | 102.86 | 0.8810 | -482.2 | 999999 | |
| 0.00 | 3.15 | 0.00 | 3.24 | -11.64 | 78.46 | -61.04 | 102.21 | 0.8788 | -228.0 | -160.7 | |
| 5.40 | -9.00 | 5.62 | -9.00 | -11.35 | 78.11 | -61.39 | 101.86 | 0.8814 | -775.4 | 999999 | |
| 0.63 | -9.00 | 0.67 | -9.00 | -12.02 | 77.66 | -61.85 | 102.58 | 0.8854 | -282.6 | 999999 | |
| 5.49 | -9.00 | 5.79 | -9.00 | -11.37 | 77.71 | -61.79 | 101.85 | 0.8846 | -699.2 | 999999 | |
| 10.53 | -9.00 | 11.25 | -9.00 | -11.55 | 77.31 | -62.19 | 102.02 | 0.8879 | -561.3 | 999999 | |
| 1.08 | -9.00 | 1.19 | -9.00 | -12.23 | 76.48 | -63.02 | 102.72 | 0.8947 | -588.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.79 | -11.50 | 76.72 | -62.78 | 101.92 | 0.8925 | 281.0 | 199.2 | |
| 4.59 | -9.00 | 5.04 | -9.00 | -11.83 | 76.52 | -62.99 | 102.28 | 0.8942 | -405.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
