SDO HMI 2014-05-21 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.06 | 103.97 | 1.58 | 53.94 | -18.21 | 139.40 | 0.45 | 181.14 | 0.2940 | 544.6 | 266.4 | |
|
previous
or next observation for the same group /

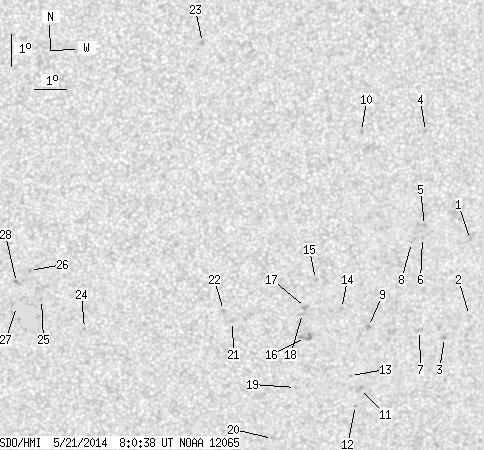

back to the solar disc SDO HMI 2014-05-21 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.33 | -16.11 | 149.98 | 11.02 | 216.85 | 0.3077 | 827.0 | 720.3 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -18.50 | 150.09 | 11.14 | 212.69 | 0.3406 | 603.0 | 400.9 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -19.20 | 149.32 | 10.36 | 209.77 | 0.3437 | 879.0 | 678.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.76 | 148.39 | 9.44 | 220.40 | 0.2479 | 838.0 | 666.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -15.67 | 148.48 | 9.53 | 213.84 | 0.2875 | 853.0 | 731.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -16.05 | 148.43 | 9.48 | 212.97 | 0.2922 | 805.0 | 612.7 | |
| 0.00 | 2.70 | 0.00 | 1.42 | -18.98 | 148.49 | 9.54 | 208.11 | 0.3340 | 723.0 | 633.7 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -16.21 | 148.09 | 9.14 | 211.72 | 0.2913 | 831.0 | 666.0 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -18.86 | 146.83 | 7.87 | 204.00 | 0.3201 | 992.0 | 792.1 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -12.76 | 146.38 | 7.43 | 213.86 | 0.2273 | 713.0 | 576.0 | |
| 0.00 | 3.42 | 0.00 | 1.81 | -20.87 | 146.63 | 7.68 | 201.04 | 0.3492 | 737.0 | 666.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -21.38 | 146.53 | 7.57 | 200.23 | 0.3564 | 614.0 | 554.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -20.42 | 146.32 | 7.36 | 200.74 | 0.3406 | 794.0 | 649.9 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -18.29 | 145.93 | 6.98 | 202.28 | 0.3057 | 276.0 | 347.2 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -17.38 | 145.07 | 6.11 | 200.89 | 0.2862 | 862.0 | 655.3 | |
| 0.00 | 6.12 | 0.00 | 3.19 | -19.21 | 144.81 | 5.85 | 197.97 | 0.3135 | 738.0 | 749.5 | |
| 0.00 | 2.52 | 0.00 | 1.31 | -18.26 | 144.77 | 5.82 | 198.91 | 0.2984 | 971.0 | 848.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.45 | 144.68 | 5.73 | 198.43 | 0.3009 | 748.0 | 573.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -20.81 | 144.54 | 5.58 | 195.71 | 0.3374 | 748.0 | 621.3 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -22.46 | 143.84 | 4.89 | 192.67 | 0.3607 | 690.0 | 644.3 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -18.71 | 142.44 | 3.49 | 191.30 | 0.2954 | 742.0 | 617.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.36 | 142.15 | 3.19 | 190.60 | 0.2888 | 849.0 | 663.0 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -10.03 | 141.39 | 2.44 | 196.60 | 0.1474 | 940.0 | 724.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -18.93 | 137.70 | -1.26 | 175.94 | 0.2941 | -803.0 | -595.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -18.01 | 136.33 | -2.62 | 171.07 | 0.2813 | -753.0 | -575.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.09 | 135.97 | -2.99 | 169.21 | 0.2672 | -832.0 | -823.1 | |
| 3.06 | 59.69 | 1.58 | 30.90 | -18.23 | 135.53 | -3.42 | 168.56 | 0.2873 | 641.1 | 97.5 | |
| 0.00 | 2.52 | 0.00 | 1.30 | -17.47 | 135.55 | -3.41 | 168.04 | 0.2748 | -833.0 | -657.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
