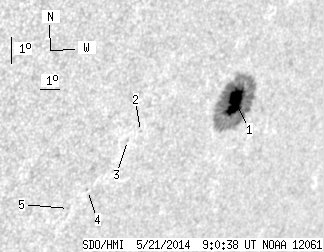

SDO HMI 2014-05-21 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.02 | 155.75 | 22.38 | 133.76 | -24.88 | 190.04 | 51.63 | 240.57 | 0.8189 | 735.3 | 223.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.02 | 152.33 | 22.38 | 131.07 | -24.83 | 190.15 | 51.74 | 240.66 | 0.8197 | 953.4 | 239.1 | |
| 0.00 | 0.99 | 0.00 | 0.79 | -25.93 | 185.82 | 47.41 | 237.84 | 0.7844 | -434.0 | -371.6 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -26.24 | 185.33 | 46.93 | 237.27 | 0.7811 | -450.0 | -370.4 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -27.95 | 184.27 | 45.86 | 234.78 | 0.7783 | -443.0 | -419.4 | |
| 0.00 | 1.08 | 0.00 | 0.84 | -28.58 | 183.67 | 45.27 | 233.77 | 0.7756 | -613.0 | -411.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
