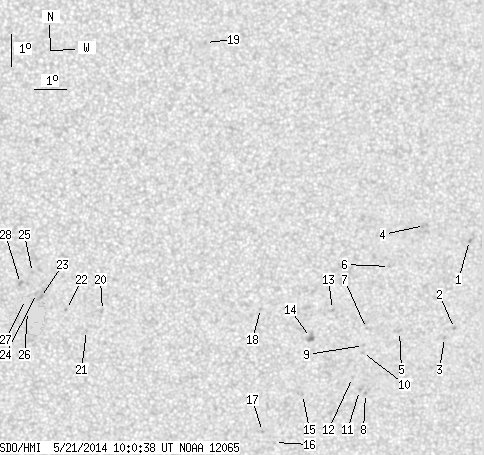

SDO HMI 2014-05-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.78 | 108.83 | 11.77 | 56.44 | -18.35 | 138.61 | 0.75 | 181.93 | 0.2940 | 513.8 | 178.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.80 | -16.12 | 149.91 | 12.05 | 219.23 | 0.3186 | 801.0 | 769.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -18.89 | 149.61 | 11.75 | 213.39 | 0.3515 | 990.0 | 680.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.18 | 149.30 | 11.44 | 212.24 | 0.3527 | 802.0 | 690.4 | |
| 0.00 | 3.42 | 0.00 | 1.77 | -15.66 | 148.44 | 10.58 | 216.64 | 0.2975 | 771.0 | 702.8 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -19.00 | 147.82 | 9.96 | 209.09 | 0.3377 | 734.0 | 658.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -16.95 | 147.38 | 9.52 | 211.38 | 0.3052 | 682.0 | 512.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.91 | 146.74 | 8.88 | 206.55 | 0.3281 | 812.0 | 621.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -20.98 | 146.82 | 8.96 | 204.00 | 0.3591 | 789.0 | 667.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.45 | 146.67 | 8.81 | 205.61 | 0.3355 | 859.0 | 636.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.67 | 146.65 | 8.79 | 205.26 | 0.3386 | 732.0 | 553.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -20.89 | 146.62 | 8.76 | 203.64 | 0.3564 | 832.0 | 769.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -20.47 | 146.36 | 8.51 | 203.54 | 0.3485 | 795.0 | 593.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -18.31 | 145.61 | 7.75 | 204.41 | 0.3112 | 718.0 | 741.2 | |
| 0.00 | 5.13 | 0.00 | 2.68 | -19.20 | 144.94 | 7.08 | 201.40 | 0.3203 | 1027.0 | 773.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.02 | 144.75 | 6.90 | 198.91 | 0.3473 | 730.0 | 648.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -22.57 | 143.90 | 6.04 | 195.42 | 0.3673 | 506.0 | 411.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -22.22 | 143.49 | 5.63 | 194.69 | 0.3600 | 846.0 | 688.9 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -18.28 | 143.29 | 5.43 | 197.71 | 0.2968 | 647.0 | 532.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.02 | 141.41 | 3.55 | 203.43 | 0.1540 | 921.0 | 727.5 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -18.35 | 138.23 | 0.38 | 181.26 | 0.2838 | -737.0 | -486.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -18.98 | 137.72 | -0.14 | 179.56 | 0.2944 | -799.0 | -633.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -18.32 | 137.08 | -0.77 | 177.39 | 0.2835 | -792.0 | -550.3 | |
| 0.00 | 3.15 | 0.00 | 1.62 | -17.94 | 136.26 | -1.60 | 174.49 | 0.2781 | -823.0 | -668.8 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -17.81 | 136.13 | -1.73 | 174.01 | 0.2762 | -771.0 | -578.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -17.15 | 136.01 | -1.85 | 173.30 | 0.2653 | -952.0 | -787.8 | |
| 22.06 | 69.32 | 11.40 | 35.85 | -18.38 | 135.84 | -2.02 | 173.25 | 0.2862 | 985.6 | 85.8 | |
| 0.72 | -26.00 | 0.37 | -26.00 | -18.00 | 135.78 | -2.08 | 172.88 | 0.2800 | -491.0 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -17.49 | 135.63 | -2.23 | 172.11 | 0.2719 | -765.0 | -663.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
