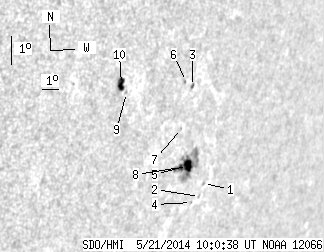

SDO HMI 2014-05-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.39 | 54.01 | 15.00 | 54.26 | -18.15 | 197.17 | 59.31 | 250.15 | 0.8702 | 103.1 | 58.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.97 | -19.13 | 199.44 | 61.58 | 249.40 | 0.8895 | -80.0 | -179.2 | |
| 0.00 | 1.17 | 0.00 | 1.26 | -19.55 | 199.44 | 61.58 | 248.94 | 0.8900 | -256.0 | -189.2 | |
| 0.00 | 1.89 | 0.00 | 1.87 | -16.12 | 197.03 | 59.17 | 252.46 | 0.8672 | 101.0 | 148.4 | |
| 0.00 | 0.72 | 0.00 | 0.77 | -19.75 | 199.03 | 61.17 | 248.65 | 0.8872 | -277.0 | -281.2 | |
| 6.66 | 38.53 | 6.86 | 39.67 | -18.59 | 198.04 | 60.18 | 249.79 | 0.8782 | 630.9 | 131.6 | |
| 0.00 | 0.81 | 0.00 | 0.79 | -15.97 | 196.59 | 58.73 | 252.57 | 0.8634 | -160.0 | -108.6 | |
| 0.00 | 0.63 | 0.00 | 0.63 | -17.44 | 197.02 | 59.16 | 250.94 | 0.8686 | 136.0 | 253.3 | |
| 3.06 | -5.00 | 3.12 | -5.00 | -18.67 | 197.64 | 59.78 | 249.64 | 0.8751 | 652.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.05 | -16.40 | 193.27 | 55.41 | 251.53 | 0.8348 | -287.0 | -254.9 | |
| 5.67 | 8.19 | 5.02 | 7.25 | -16.16 | 192.89 | 55.03 | 251.75 | 0.8309 | -652.0 | -474.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
