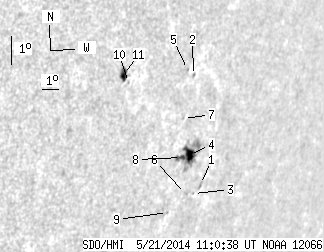

SDO HMI 2014-05-21 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.47 | 56.44 | 16.40 | 57.83 | -18.27 | 197.31 | 60.00 | 250.13 | 0.8759 | 143.2 | 50.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 2.47 | -19.50 | 199.41 | 62.10 | 249.07 | 0.8938 | -268.0 | -251.1 | |
| 0.00 | 1.62 | 0.00 | 1.62 | -16.10 | 196.98 | 59.67 | 252.54 | 0.8713 | 232.0 | 233.7 | |
| 0.00 | 0.72 | 0.00 | 0.78 | -19.79 | 199.12 | 61.81 | 248.69 | 0.8920 | -339.0 | -321.6 | |
| 7.74 | 38.98 | 8.10 | 40.79 | -18.57 | 198.07 | 60.76 | 249.90 | 0.8827 | 587.0 | 126.6 | |
| 0.00 | 0.99 | 0.00 | 0.98 | -15.92 | 196.52 | 59.21 | 252.68 | 0.8673 | -9.0 | -111.1 | |
| 0.00 | 1.44 | 0.00 | 1.54 | -19.81 | 198.59 | 61.28 | 248.59 | 0.8881 | -128.0 | -190.9 | |
| 0.00 | 1.26 | 0.00 | 1.27 | -17.46 | 197.05 | 59.74 | 251.01 | 0.8733 | 212.0 | 194.6 | |
| 3.42 | -4.00 | 3.53 | -4.00 | -18.68 | 197.61 | 60.30 | 249.71 | 0.8793 | 653.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.94 | -20.44 | 197.80 | 60.49 | 247.76 | 0.8829 | 323.0 | 246.5 | |
| 0.00 | 0.90 | 0.00 | 0.82 | -16.42 | 193.24 | 55.93 | 251.60 | 0.8395 | -323.0 | -280.5 | |
| 5.31 | 7.38 | 4.77 | 6.62 | -16.18 | 192.85 | 55.54 | 251.82 | 0.8356 | -685.2 | -517.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
