SDO HMI 2014-05-21 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.91 | 220.19 | 51.53 | 208.95 | -11.36 | 79.05 | -58.26 | 102.14 | 0.8541 | -99.4 | -77.2 | |
|
previous
or next observation for the same group /

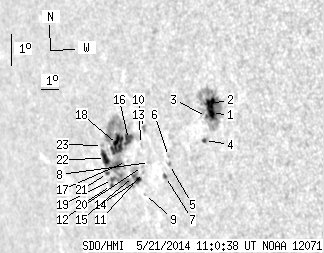

back to the solar disc SDO HMI 2014-05-21 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.49 | 66.44 | 4.69 | 56.73 | -10.62 | 83.06 | -54.25 | 101.67 | 0.8167 | 801.5 | 293.3 | |
| 8.64 | -1.00 | 7.37 | -1.00 | -10.31 | 83.09 | -54.22 | 101.30 | 0.8161 | 810.0 | 999999 | |
| 0.27 | -1.00 | 0.23 | -1.00 | -10.71 | 82.77 | -54.54 | 101.74 | 0.8196 | 449.7 | 999999 | |
| 0.99 | 1.98 | 0.86 | 1.72 | -11.44 | 82.46 | -54.85 | 102.60 | 0.8233 | 527.5 | 445.8 | |
| 0.00 | 1.44 | 0.00 | 1.32 | -12.12 | 80.29 | -57.02 | 103.17 | 0.8443 | 583.0 | 473.4 | |
| 0.00 | 1.08 | 0.00 | 0.99 | -11.87 | 80.32 | -56.99 | 102.88 | 0.8439 | 569.0 | 431.5 | |
| 0.90 | 2.07 | 0.84 | 1.92 | -12.48 | 79.94 | -57.37 | 103.55 | 0.8479 | 520.6 | 426.4 | |
| 0.00 | 1.71 | 0.00 | 1.62 | -12.03 | 79.16 | -58.15 | 102.93 | 0.8545 | 410.0 | 253.7 | |
| 0.00 | 0.72 | 0.00 | 0.70 | -13.00 | 78.50 | -58.81 | 104.00 | 0.8610 | 304.0 | 262.6 | |
| 0.00 | 2.43 | 0.00 | 2.30 | -10.97 | 79.15 | -58.16 | 101.70 | 0.8537 | -686.0 | -531.7 | |
| 0.00 | 1.08 | 0.00 | 1.04 | -12.32 | 78.70 | -58.61 | 103.23 | 0.8588 | 345.0 | 275.2 | |
| 0.00 | 1.26 | 0.00 | 1.21 | -12.14 | 78.70 | -58.61 | 103.02 | 0.8586 | -245.0 | -229.5 | |
| 0.00 | 0.99 | 0.00 | 0.94 | -11.46 | 78.88 | -58.43 | 102.25 | 0.8565 | 261.0 | 241.5 | |
| 2.16 | 136.74 | 2.10 | 136.18 | -12.53 | 78.32 | -58.99 | 103.43 | 0.8622 | 485.8 | -273.4 | |
| 0.99 | -14.00 | 0.97 | -14.00 | -12.43 | 78.05 | -59.26 | 103.29 | 0.8644 | -401.5 | 999999 | |
| 6.30 | -14.00 | 6.14 | -14.00 | -11.29 | 78.15 | -59.16 | 101.98 | 0.8627 | -784.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.53 | -11.96 | 77.79 | -59.52 | 102.72 | 0.8663 | -520.0 | -520.7 | |
| 16.83 | -14.00 | 16.74 | -14.00 | -11.42 | 77.43 | -59.88 | 102.07 | 0.8690 | -594.7 | 999999 | |
| 1.71 | -14.00 | 1.74 | -14.00 | -12.48 | 76.72 | -60.59 | 103.22 | 0.8757 | -735.9 | 999999 | |
| 0.99 | -14.00 | 1.01 | -14.00 | -12.67 | 76.58 | -60.73 | 103.42 | 0.8769 | -548.4 | 999999 | |
| 0.90 | -14.00 | 0.92 | -14.00 | -12.29 | 76.47 | -60.84 | 102.98 | 0.8775 | -378.3 | 999999 | |
| 7.74 | -14.00 | 7.92 | -14.00 | -11.83 | 76.52 | -60.79 | 102.45 | 0.8768 | -313.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.75 | -11.42 | 76.48 | -60.83 | 101.99 | 0.8769 | 400.0 | 320.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
