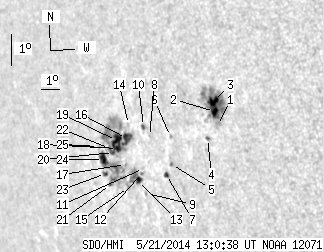

SDO HMI 2014-05-21 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.82 | 202.24 | 49.79 | 186.91 | -11.37 | 78.99 | -57.22 | 102.26 | 0.8447 | -116.8 | -88.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.41 | 0.00 | 3.66 | -10.99 | 83.18 | -53.03 | 102.27 | 0.8048 | 240.0 | 268.7 | |
| 5.76 | 50.49 | 4.78 | 41.89 | -10.56 | 83.14 | -53.07 | 101.73 | 0.8048 | 803.6 | 357.1 | |
| 8.37 | -2.00 | 6.95 | -2.00 | -10.25 | 83.16 | -53.05 | 101.35 | 0.8043 | 777.5 | 999999 | |
| 0.54 | 1.62 | 0.46 | 1.37 | -11.37 | 82.56 | -53.65 | 102.67 | 0.8115 | 491.8 | 367.6 | |
| 0.00 | 1.44 | 0.00 | 1.28 | -12.12 | 80.39 | -55.82 | 103.31 | 0.8333 | 637.0 | 554.5 | |
| 0.00 | 1.35 | 0.00 | 1.19 | -11.26 | 80.60 | -55.61 | 102.30 | 0.8305 | 474.0 | 341.9 | |
| 1.62 | 2.88 | 1.46 | 2.59 | -12.42 | 80.01 | -56.20 | 103.62 | 0.8371 | 455.8 | 386.4 | |
| 0.00 | 0.63 | 0.00 | 0.57 | -11.23 | 79.43 | -56.78 | 102.14 | 0.8414 | -478.0 | -495.7 | |
| 0.00 | 1.71 | 0.00 | 1.60 | -12.97 | 78.67 | -57.54 | 104.11 | 0.8499 | 322.0 | 250.3 | |
| 1.08 | 2.25 | 0.99 | 2.06 | -10.91 | 79.19 | -57.03 | 101.74 | 0.8434 | -594.0 | -489.2 | |
| 0.00 | 1.35 | 0.00 | 1.26 | -12.20 | 78.77 | -57.44 | 103.21 | 0.8483 | -133.0 | -180.4 | |
| 0.36 | 1.26 | 0.34 | 1.18 | -12.35 | 78.60 | -57.61 | 103.37 | 0.8499 | 476.5 | 358.8 | |
| 3.24 | 13.59 | 3.05 | 12.85 | -12.56 | 78.35 | -57.86 | 103.59 | 0.8523 | 401.5 | -285.5 | |
| 0.00 | 1.53 | 0.00 | 1.44 | -10.83 | 78.34 | -57.87 | 101.56 | 0.8510 | -223.0 | -292.9 | |
| 0.00 | 1.98 | 0.00 | 1.90 | -12.76 | 77.68 | -58.53 | 103.75 | 0.8584 | -583.0 | -487.5 | |
| 8.10 | 110.53 | 7.66 | 106.92 | -11.25 | 78.09 | -58.12 | 102.03 | 0.8536 | -743.4 | -267.8 | |
| 0.00 | 0.99 | 0.00 | 0.95 | -12.05 | 77.76 | -58.45 | 102.93 | 0.8571 | -466.0 | -452.6 | |
| 4.14 | -16.00 | 3.98 | -16.00 | -11.54 | 77.46 | -58.75 | 102.31 | 0.8594 | -761.6 | 999999 | |
| 8.73 | -16.00 | 8.39 | -16.00 | -11.29 | 77.48 | -58.73 | 102.03 | 0.8590 | -641.4 | 999999 | |
| 1.89 | -16.00 | 1.84 | -16.00 | -11.66 | 77.18 | -59.03 | 102.42 | 0.8619 | -567.5 | 999999 | |
| 0.81 | -16.00 | 0.80 | -16.00 | -12.63 | 76.63 | -59.58 | 103.49 | 0.8673 | -552.0 | 999999 | |
| 0.27 | -16.00 | 0.26 | -16.00 | -11.53 | 76.98 | -59.23 | 102.25 | 0.8636 | -334.0 | 999999 | |
| 1.53 | 3.15 | 1.52 | 3.13 | -12.29 | 76.46 | -59.76 | 103.08 | 0.8686 | -390.3 | -293.6 | |
| 7.38 | -16.00 | 7.31 | -16.00 | -11.85 | 76.49 | -59.72 | 102.58 | 0.8679 | -358.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.07 | -11.45 | 76.33 | -59.88 | 102.10 | 0.8690 | 199.0 | 177.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
