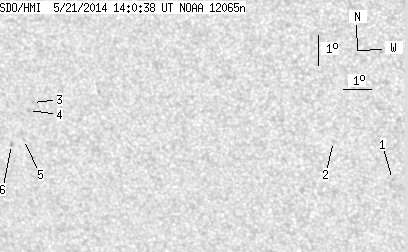

SDO HMI 2014-05-21 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.20 | 0.00 | 4.21 | -25.01 | 113.57 | -22.09 | 139.99 | 0.5274 | 640.2 | 490.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.50 | -26.55 | 122.33 | -13.33 | 153.70 | 0.4674 | 605.0 | 494.1 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -25.27 | 120.44 | -15.22 | 149.13 | 0.4646 | 471.0 | 234.3 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -23.85 | 109.94 | -25.72 | 133.48 | 0.5491 | 773.0 | 693.6 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -24.11 | 109.74 | -25.92 | 133.65 | 0.5536 | 788.0 | 635.4 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -25.06 | 109.33 | -26.33 | 134.59 | 0.5663 | 453.0 | 444.9 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -25.22 | 108.85 | -26.81 | 134.33 | 0.5727 | 751.0 | 574.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
